14 February 2019

002410

Markus Baumgärtel

Modeling | Structure

RFEM

How can I consider thermal decoupling in RFEM, for example, due to Schöck Isokorb®?

Answer

In the case of Schöck Isokorb®, tensile forces are absorbed by stainless steel and compressive forces by micro‑fiber reinforced high-performance concrete with PE‑HD plastic coating through the insulating layer. Depending on the selected type, moments and/or shear forces can be transferred. This limited force transmission must be considered in the structural analysis.

Technical information according to EC 2 [1] for Isokorb® includes a FEM guideline where the modeling is described.

Basically, the modeling in RFEM can be done using line hinges or line releases between the respective surface elements. There is the following distinction:

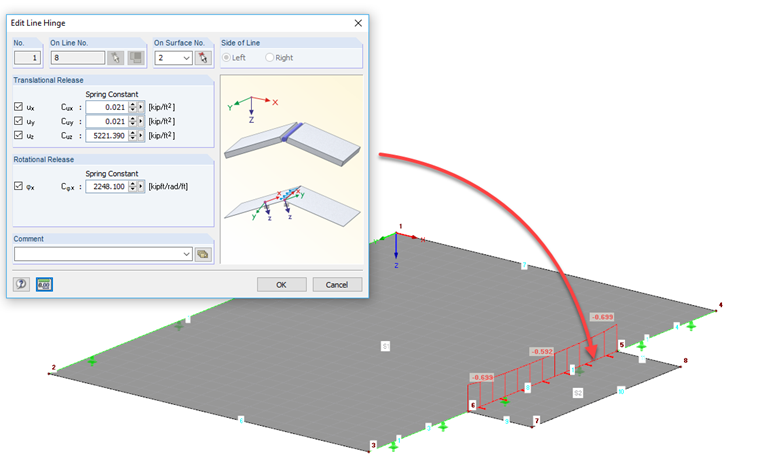

  • Line Hinge
    The line hinge should rest on the external side (balcony side). However, it is not possible to consider any nonlinearities when using the line hinge.

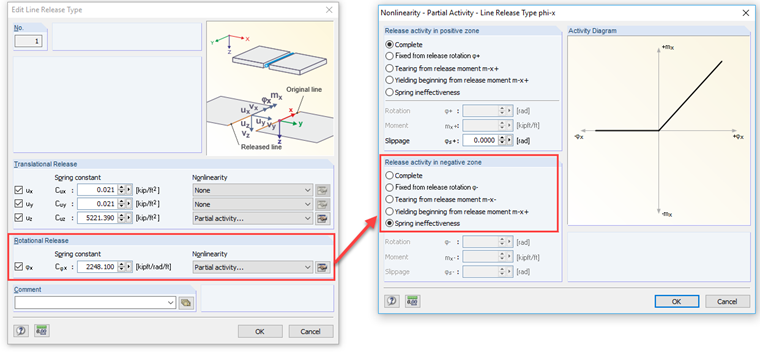

  • Line Release
    It is possible to enter nonlinearities. This allows you to consider the spring ineffectiveness of Isokorb®.

The detailed procedure for entering Schöck Isokorb® together with model files is described in the technical article in our Knowledge Base, which you can find under Links below. Furthermore, there is a webinar dealing with the modelling of a balcony slab using Isokorb®.

Keywords

thermal decoupling Schöck Isokorb Isokorb Iso-element line release line hinge

Reference

[1]   Eurocode 2: Design of concrete structures
