FAQ 002422 EN 15 February 2019

Markus Baumgärtel Design RFEM RSTAB

I would like to count on a multiple field carrier. Is it possible to automatically set the payloads field by field (for the dimensioning of the maximum support and field moment)? Or does the program do this automatically?

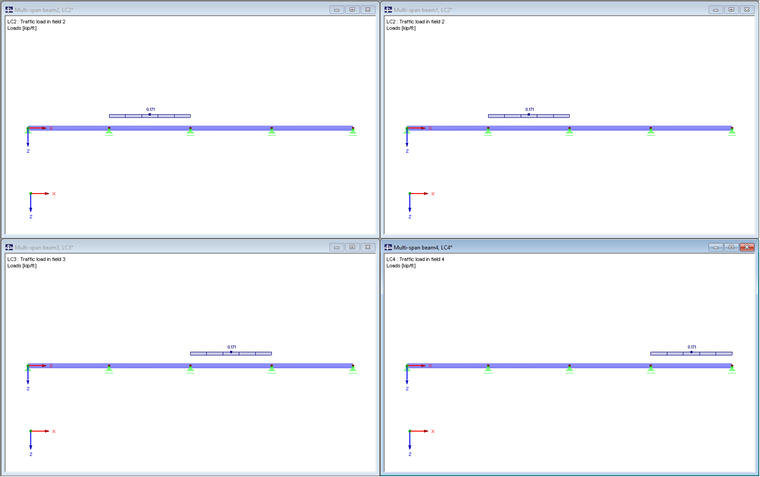

So that the checkerboard / field-wise arrangement of the loads takes place, one has to load a single load case "manually" for each field that is to be loaded. With the automatic combination of the actions, which can be considered in the basic information of the position, all possible load positions are taken into account.


Load position checkerboard-like multi-field carrier
