FAQ 002433 EN 19 February 2019

Markus Baumgärtel General RFEM RSTAB

If I want to rotate my model with the middle mouse button Ctrl key, then the rotation point is no longer the center of gravity of the model but a distant point. How can this be fixed?

Answer

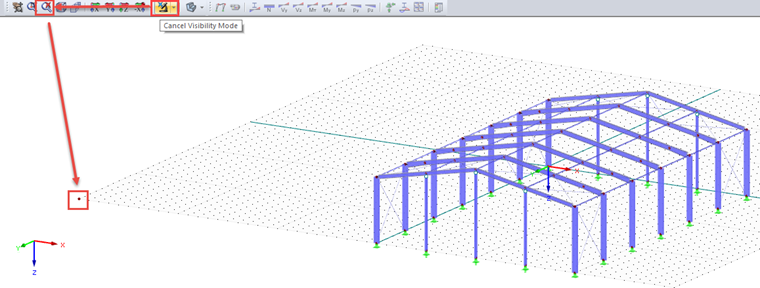

It is often the case that I still have a knot somewhere in the room. Sometimes directly in the coordinate origin, which is why this is not found then. In such a case it is recommended to first remove the visibility mode and afterwards to use the "Display model as a whole" function (see Figure 1). Usually the responsible element is found so fast.

Keywords

Rotate point pivot rotate model rotate model

Reference
