Check of Nodal Supports for Member Set in RF-/STEEL EC3

Can I check the input of nodal supports for a set of members in the RF‑/STEEL EC3 add‑on module? I am not sure if my entries are correct.

Answer:

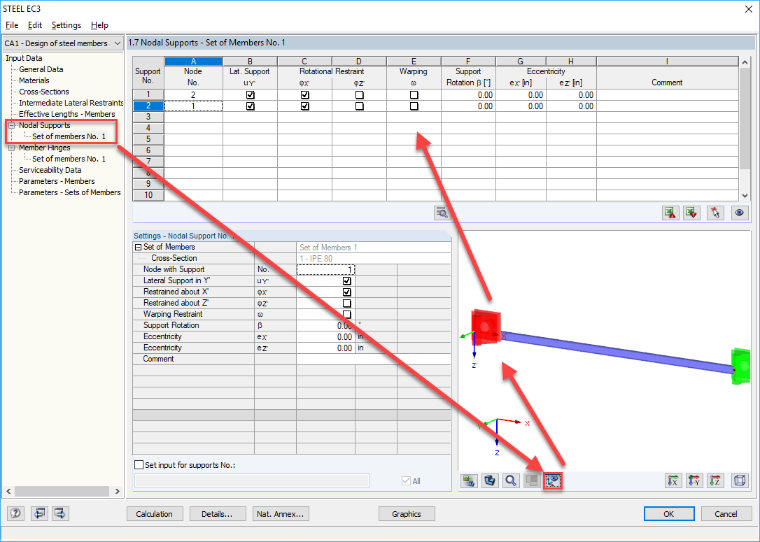

The easiest way to check the nodal supports defined in RF-/STEEL EC3 is to use the graphical result display. You can activate this with the "Local Coordinate System" button under the graphic in Window 1.7 (see the image).

Graphical Check of Nodal Supports
Graphical Check of Nodal Supports
