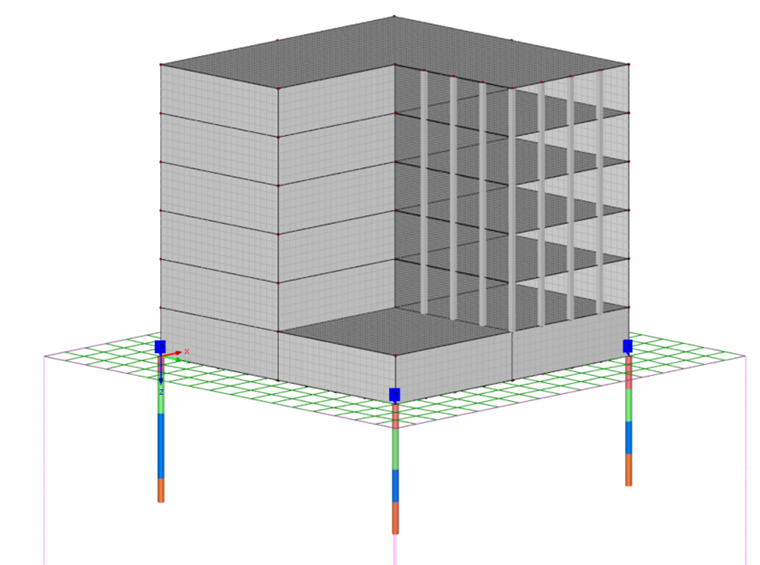

In principle, one soil sample is sufficient to define the terrain model or the soil structure. However, if the layer thicknesses change along the foundation body, further soil samples should be defined (see Image 01).

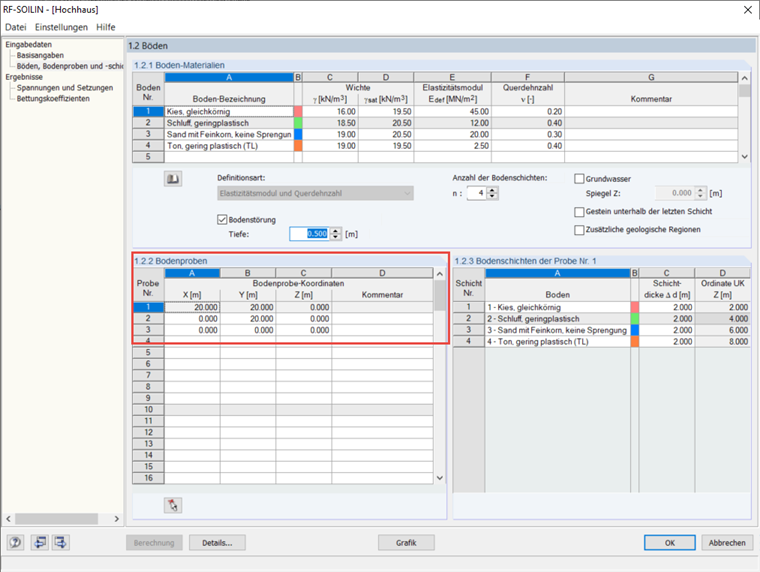

The result of the soil structure can be displayed in the screen view of RFEM (see Image 02).
