Answer:
The property of the masonry material depends on a large number of input parameters. A list of all possible combinations would be very extensive. You can create a material by clicking "Create New Masonry Material..." Once the material has been created, it remains in the library so it can be used again later.
Question

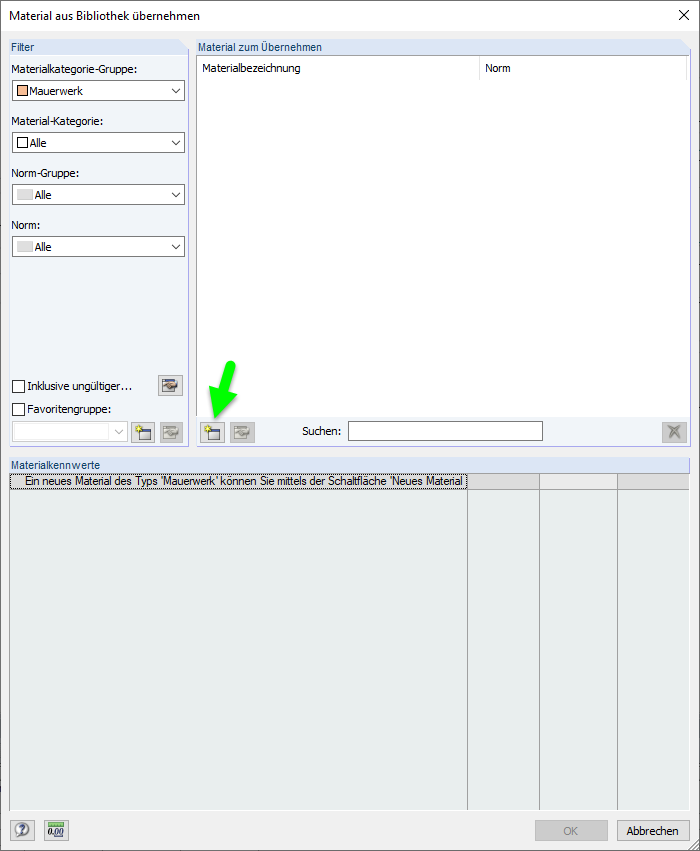

I would like to select a material of the Masonry type in the Material Library. Why is the library in the Masonry category empty?
