FAQ 002682 EN 26 March 2019

Adrian Langhammer General RFEM

How can I create the line where two arbitrarily shaped surfaces intersect in space?

Answer

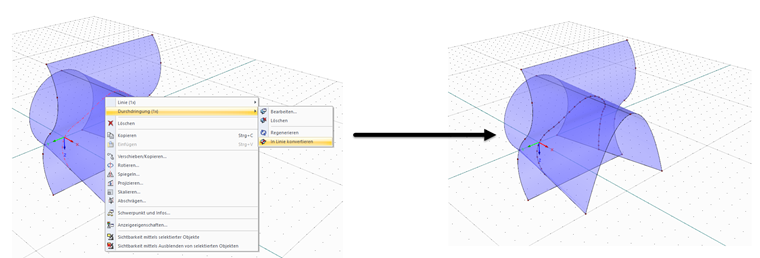

The line can be generated by means of penetration. The line created by the penetration can subsequently be converted into a classic line via the context menu via the function "Convert to line".

Keywords

Penetration Line Blend surfaces Intersect volumes
