Answer:

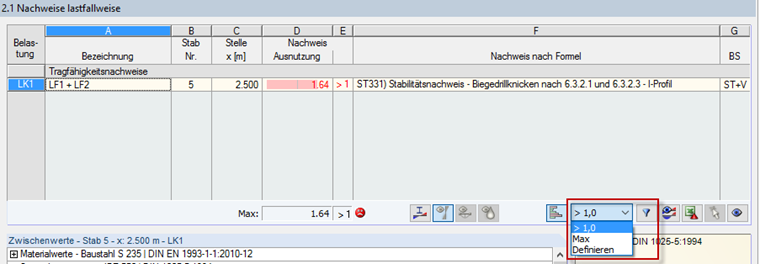

In the printout report selection, you can find the filter options, for example, to only display the maximum design by member in the table. These filters reduce the length considerably. The filter options are also available directly in the add-on module.
Question
The printout report of the STEEL EC3 results is too long. How can I reduce the content to a minimum?
