FAQ 002934 EN 15 April 2019

Adrian Langhammer Add-on Modules RFEM RF-CONCRETE

If the module RF-CONCRETE Surfaces is used for the proof without direct crack width calculation according to EN 1992 7.3.3, is it able to output a required reinforcement with the appropriate diameter?

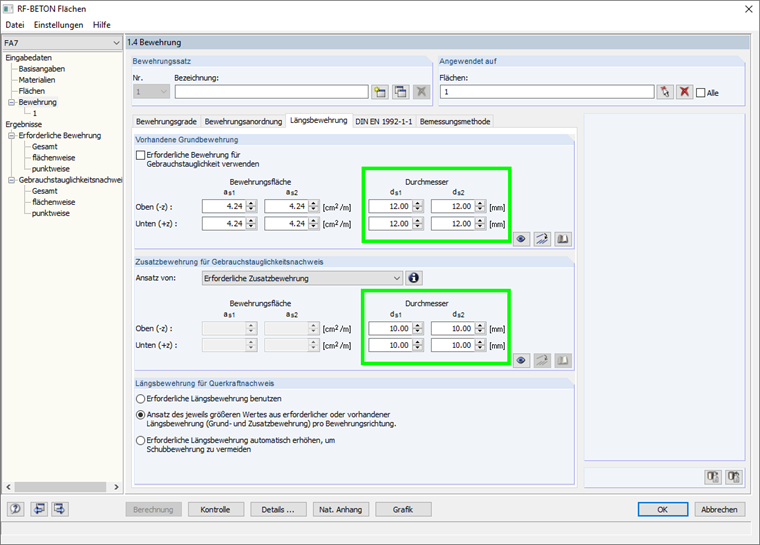

The program can only determine a required reinforcement in [cm² / m] using a selected diameter of the longitudinal reinforcement. The basic diameter for the verification of the limitation of the bar diameter is defined in the form 1.4 in the tab "Longitudinal Reinforcement".

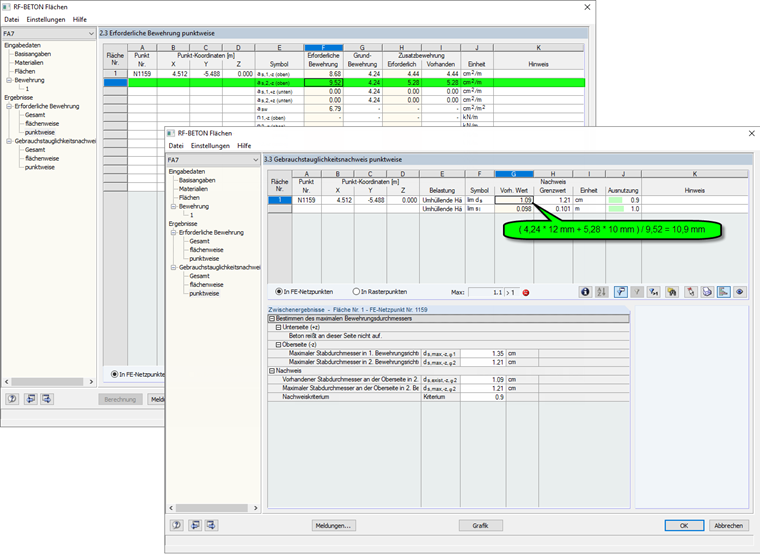

Here, both a diameter for the basic reinforcement and a diameter for the reinforcement in the limit state of serviceability can be defined (see Figure 1). The diameter used for the verification according to 7.3.3 is determined by the weighting of the two defined diameters. The basis for this is the ratio of the reinforcement quantities of the existing basic reinforcement and the additional reinforcement set for the GZG (see Figure 2).


Limit diameter Indirect limitation of the crack width Indirect calculation Crack proof
