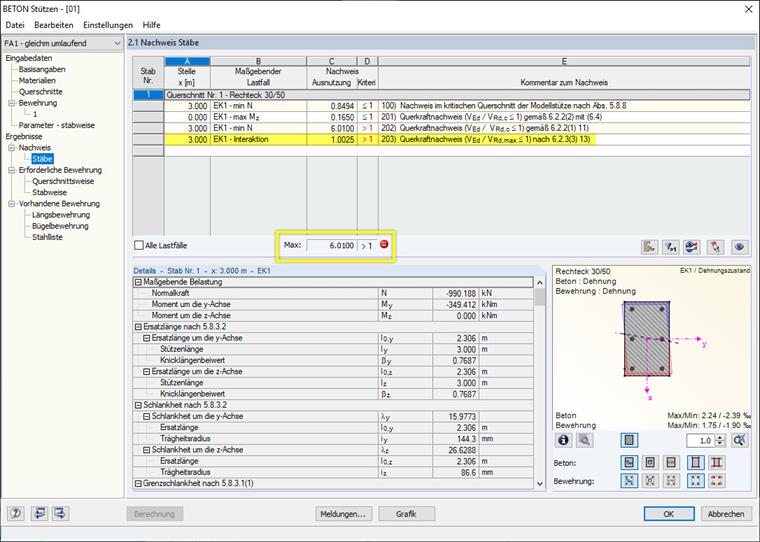

The design criterion for VEd / VRd, c is output as governing, although a shear reinforcement should be designed accordingly. In addition, the design VEd / VRds is missing. Why does this happen?

Answer

In the add-on module, the shear design is performed in the following sequence:

1. VEd / VRd, c
2nd VEd / VRd, max
3. VEd / VRd, p

In the course of VEd / VRd, max, the inclination of the compression strut is determined and in the course of VEd / VRd, s, the reinforcement amount is determined iteratively.

If VEd / VRd, max is not fulfilled in the design run, the subsequent design VEd / VRd, s is not performed and the design criterion VEd / VRd, c is displayed.

Keywords

shear force design Ratios > 1 Design ratio
