Is there any option to display the stresses for a solid model after a dynamic time history analysis?
Answer

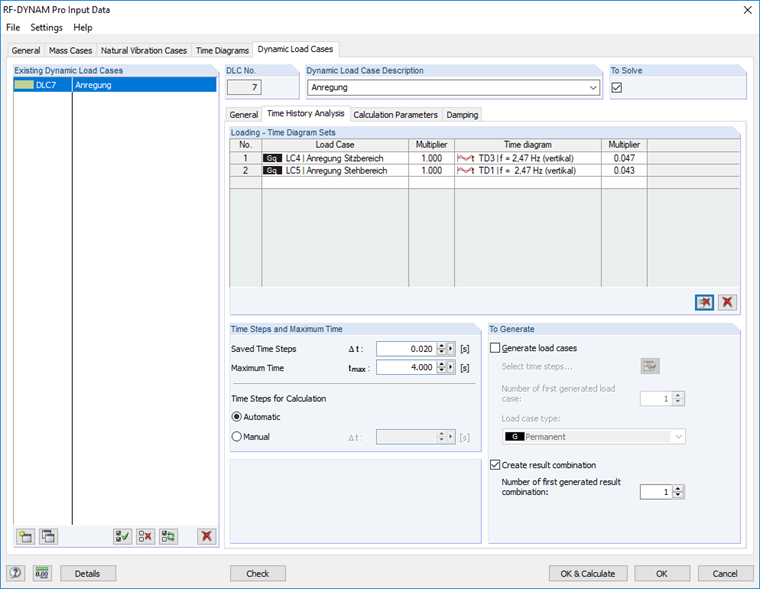

The result tables of the RF‑DYNAM Pro add-on module do not display the stresses for solids. In order to display the stresses and internal forces, it is necessary to export the results to a load case or to a result combination. Then, you can view the results in a load case or a result combination as usual.
