I would like to divide a line very finely, but I can only define a minimum of 0.5mm with the function "Divide Line → Distance". How can I avoid the problem?

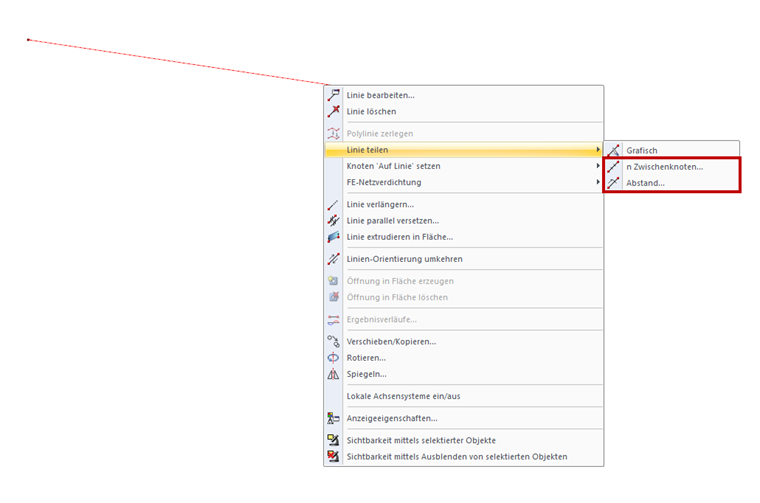

The option "Divide Line → Distance" has a fixed minimum limit of 0.50 mm. If you want to shorten a line (for ex 0.25mm), the line has to be divided to 1.00mm. Then, you can use the & quot; Divide Line → n Intermediate Node & quot; function to generate three intermediate nodes. Thus, you get a line length of 0.25mm.

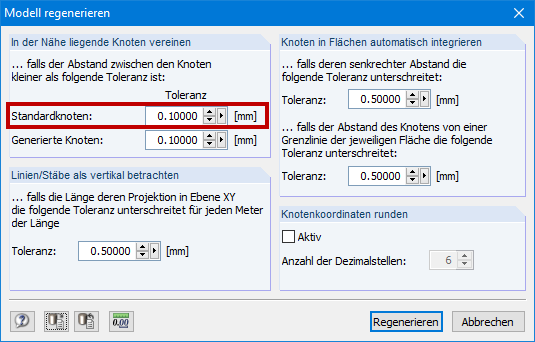

Each file combines nearby nodes that are closer together than 0.5mm. In the case mentioned above, you can adjust this with the function "Tools → Regenerate Model" (see Figure 02).


Divide line Line Length Intermediate nodes
