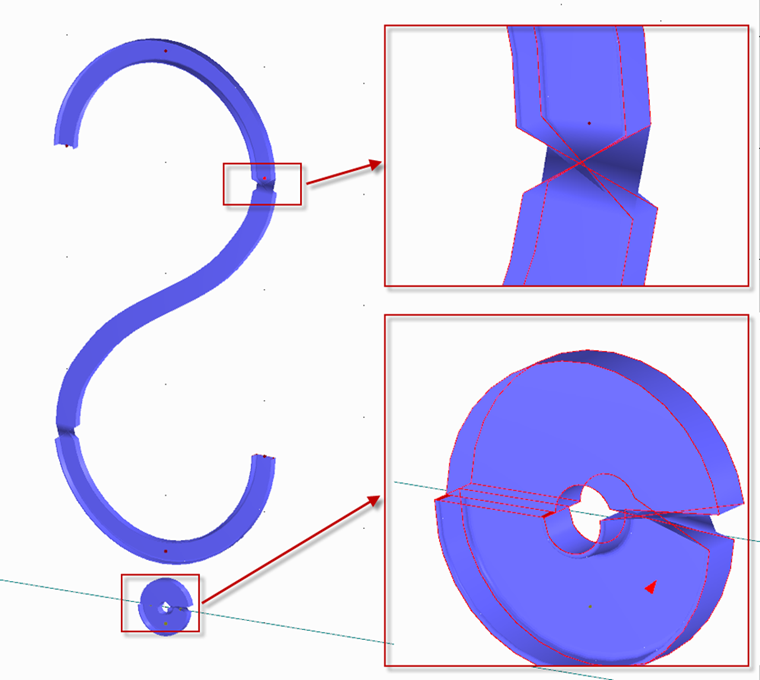

The cross-section suddenly twists within the member or continuous member.
What is the cause, and how can I fix it?

Answer

It is caused by the automatic orientation of the local axes in relation to the global axis system. In most cases, it is sufficient to specify a member rotation using an angle or a help node. However, if the inclination of the member is reversed, it must be divided and then adjusted utilizing the member rotation.

You can find a detailed description of the member rotation angle in RSTAB and RFEM in the links below.

Keywords

Axis system Twisted Local axes Member axes
