When designing seismic equivalent loads with a Response Spectra Analysis (RSA) in RFEM, how can I apply the modal response parameters Ie/R according to Sect. 12.9.1.2 in the ASCE 7-16 to my results?

Answer

The modal response parameters can be set in the RF-DYNAM PRO - Equivalent Forces add-on module under the Response Spectra tab. In the Code Parameters table > Type of Spectrum > Modal Response Parameters, the default is set to "No Modification". This setting can be seen in Figure 1.

Changing this to "Force Related" in the drop-down window will divide the response spectra by Ie/R based on Sect. 12.9.1.2 [1]. Additionally, in the Code Parameters table > Coefficients, the Seismic Importance Factor (Ie) and the Response Modification Factor (R) can further be set.

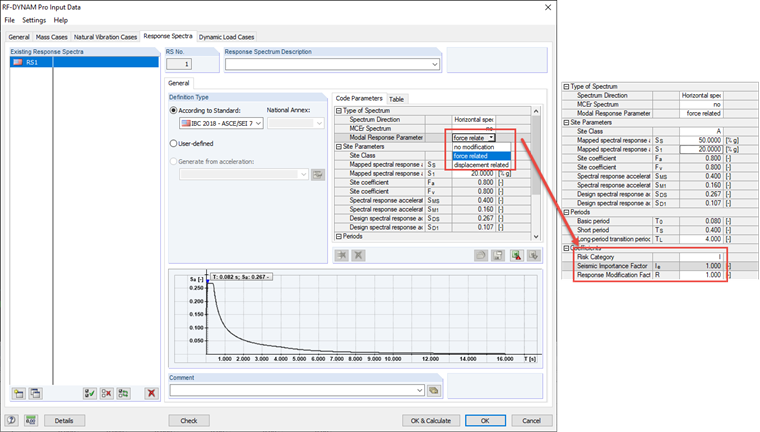

Figure 01 - RF-Dynam Pro - Equivalent loads add-on module

Keywords

ASCE 7 Seismic equivalent RSA Modal Response

Reference

[1]   ASCE/SEI 7‑16, Minimum Design Loads and Associated Criteria for Buildings and Other Structures
