In Window "1.4 Longitudinal Reinforcement," I always see all surfaces, although I do not want to check punching for these surfaces at all. Is it possible to only display the designed surfaces?

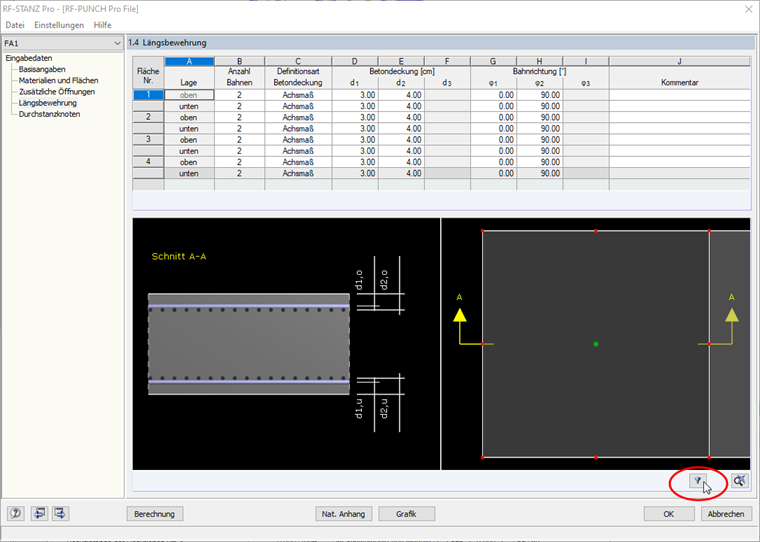

Yes, it is possible. In Window "1.4 Longitudinal Reinforcement" includes a filter function.

If you click this button, the surfaces connected to the punching points are only displayed.


Filter Surfaces Punching Punching shear design Surface reinforcement
