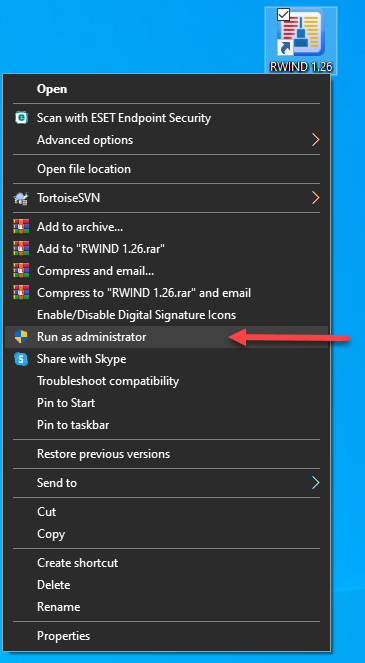

- Run RWIND Simulation "As Administrator". To do this, right-click the RWIND Simulation icon and select "Run As Administrator".

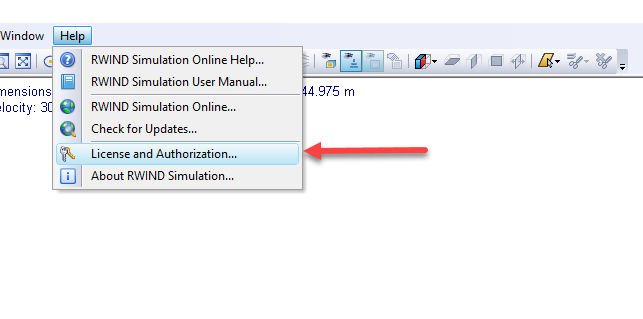

- Select the "RWIND Simulation - License and Authorization" function in the "Help" menu.

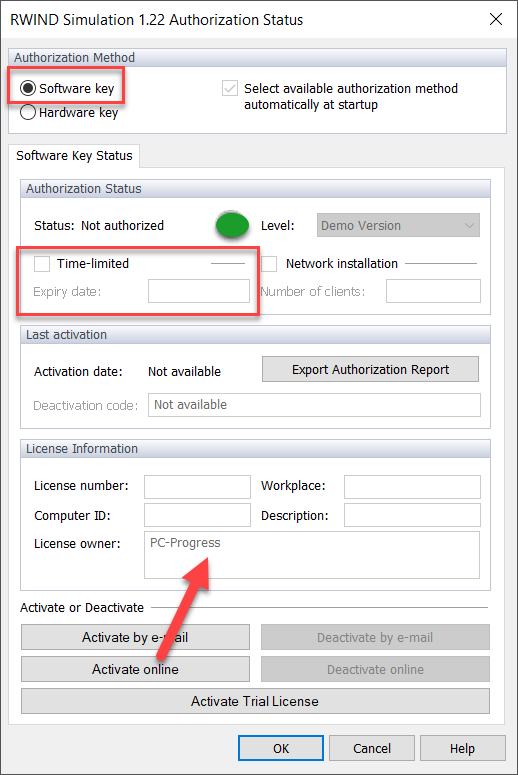

This opens the "RWIND Simulation 1.xx Authorization Status" dialog box. - Check in the "RWIND Simulation 1.xx Authorization Status" dialog box to see if an active software key authorization is available. This is the case if the "Software Key" option is selected in the "Authorization Method" section, and an active authorization is indicated by a green dot in the "Authorization Status" section.
If the check is negative, and a red dot is displayed, no RWIND Simulation license based on a software key is activated on the single-user computer. As a result, the activation period for a license cannot be extended.

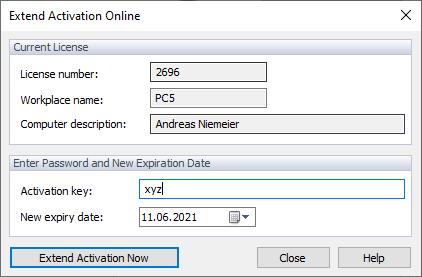

If the requirements mentioned above have been met, click the "Extend Activation Online" button. The "Extend Activation Online" dialog box appears. - The "Extend Activation Online" dialog box shows the license specification to be extended.
Enter your online activation key based on your contract documents and define the new activation period in the date field.
Then, click the "Extend Activation Now" function to run the online extension.

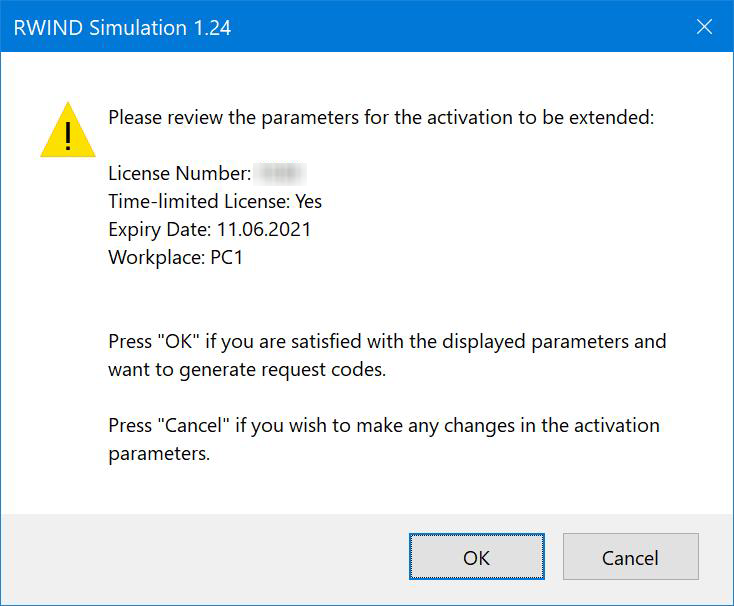

This opens the "RWIND Simulation 1.xx" dialog box. - In the "RWIND Simulation 1.xx" dialog with the confirmation prompt about the planned modification, click "OK" to finally change the activation period.
Upon successfully changing the activation period, you will receive a confirmation message and can use the program without restrictions.
Extending RWIND Software Key Activation Period Online Before Expiration
How can I extend an active license of RWIND Simulation based on a software key online before the activation period expires?
