How can I authorize the RWIND Simulation program with a hardware key on a single‑user computer?

Answer

The RWIND Simulation program is protected against unauthorized use. The program can be authorized with a single-user or network hardware key. For this, it is necessary to insert the single-user hardware key into the local/network hardware key on a network computer. Proceed as follows:

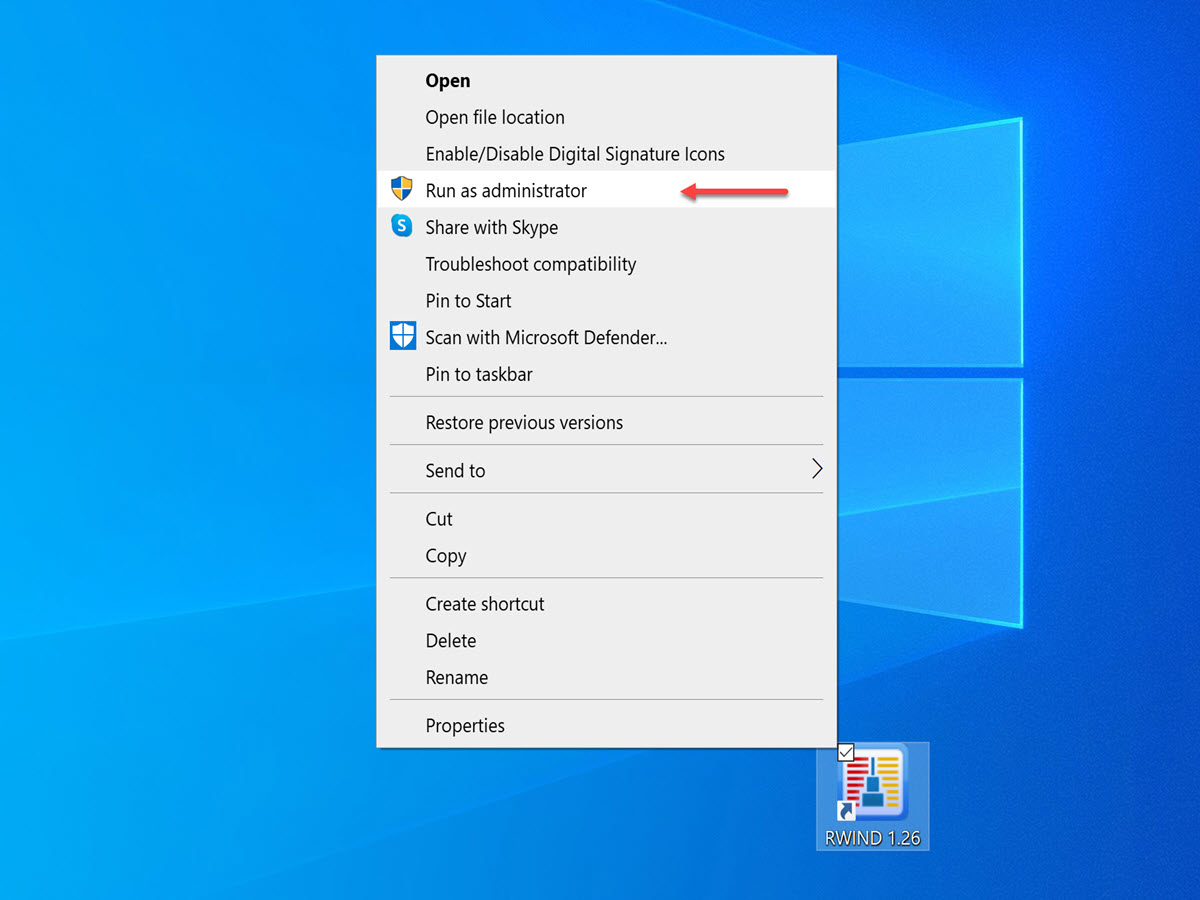

  1. Run RWIND Simulation "As Administrator." To do this, right-click the RWIND Simulation icon and select "Run As Administrator."

    Figure 01 - Program Start

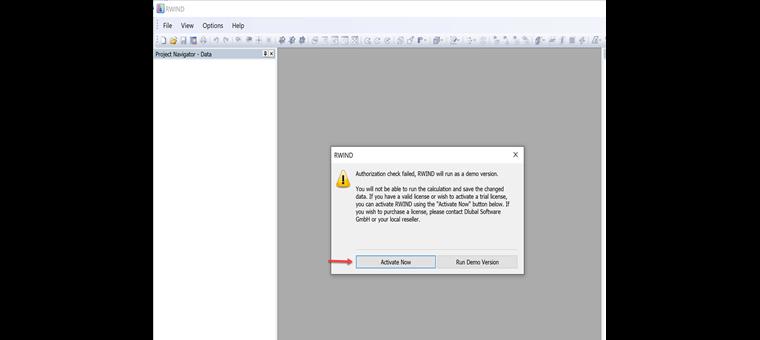

  2. Confirm the authorization check with the "Activate Now" function.

    Figure 02 - Authorization Check

    This opens the "RWIND Simulation 1.xx Demo Authorization Status" dialog box.

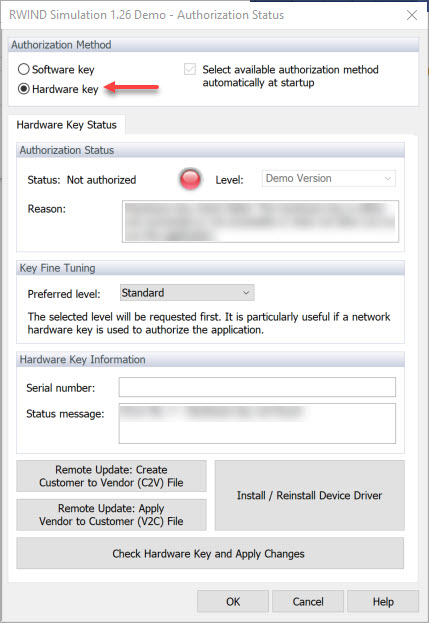

  3. In the "RWIND Simulation 1.xx Demo Authorization Status" dialog box, select the "Hardware Key" option in the Authorization Method area.

    Figure 03 - Authorization Method

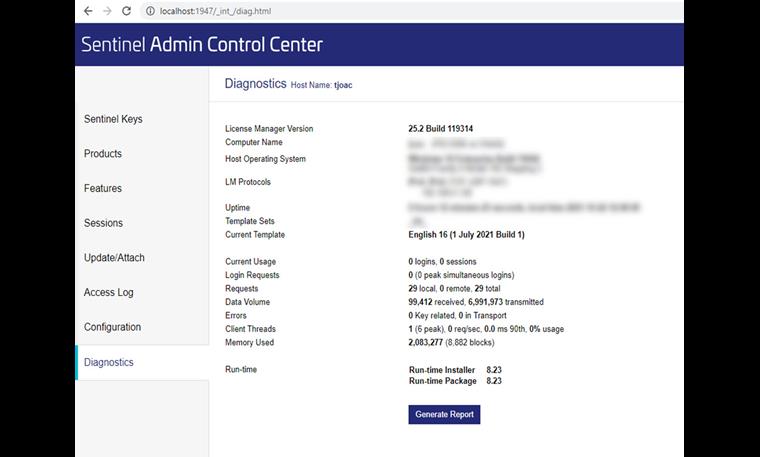

  4. The authorization of the program RWIND Simulation with a hardware key requires an installed hardware key device driver on the computer where you want to run the RWIND Simulation. Since many other programs (RSTAB, RFEM, and so on) use a similar software protection technology, this device driver is already installed on the computer in many cases. The correct use of the driver package can be checked on the local website http://localhost:1947/_int_/diag.html. If a functioning driver is displayed there, no action is necessary, and you can skip to the next point.

    Figure 04 - Device Driver Check

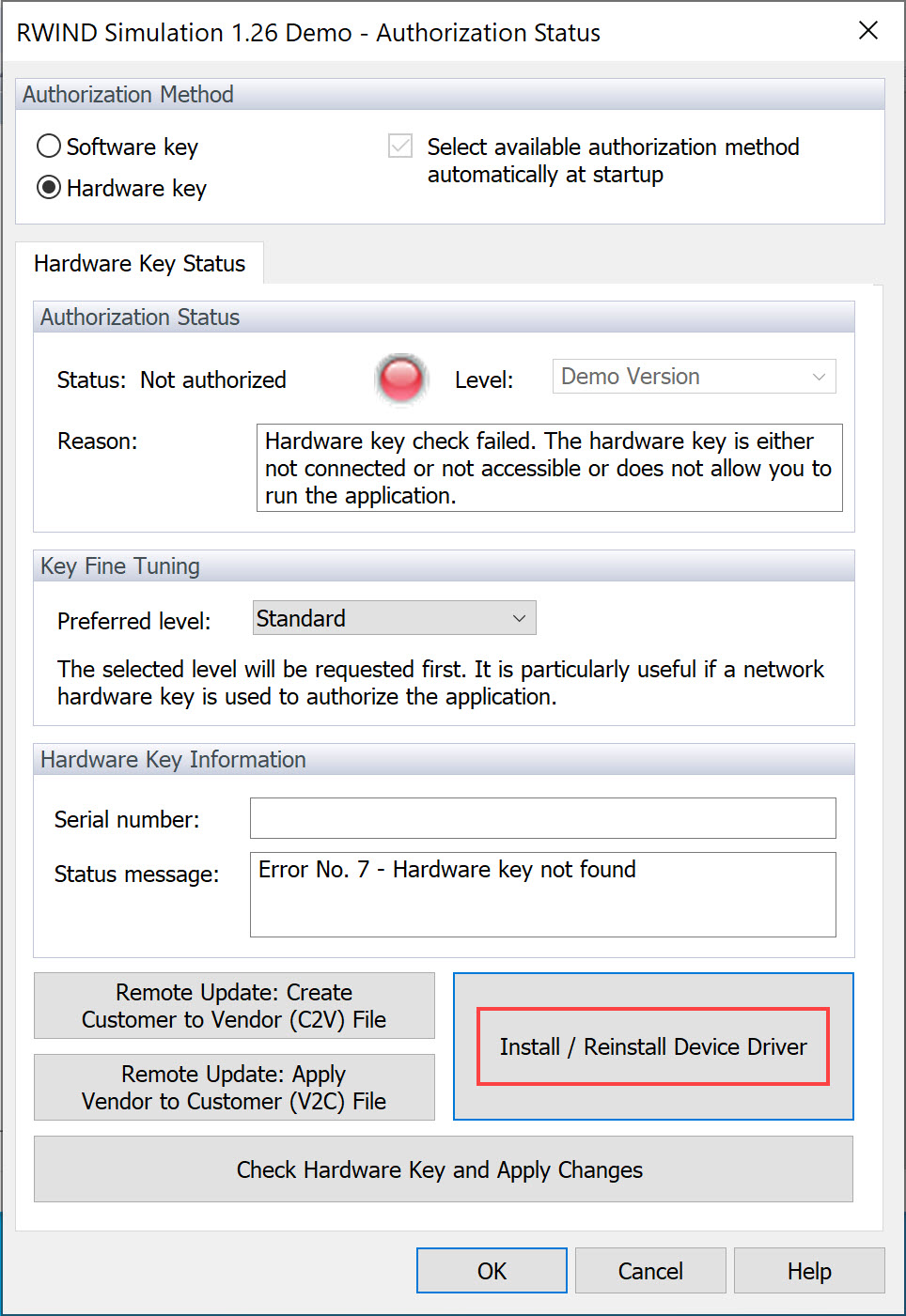

    If not, the necessary driver has to be installed with the "Install/Reinstall Device Driver" function.

    Figure 05 - Device Driver Installation

  5. Make sure that the single-user hardware key is connected to the local computer or the network hardware key is connected to the network computer.

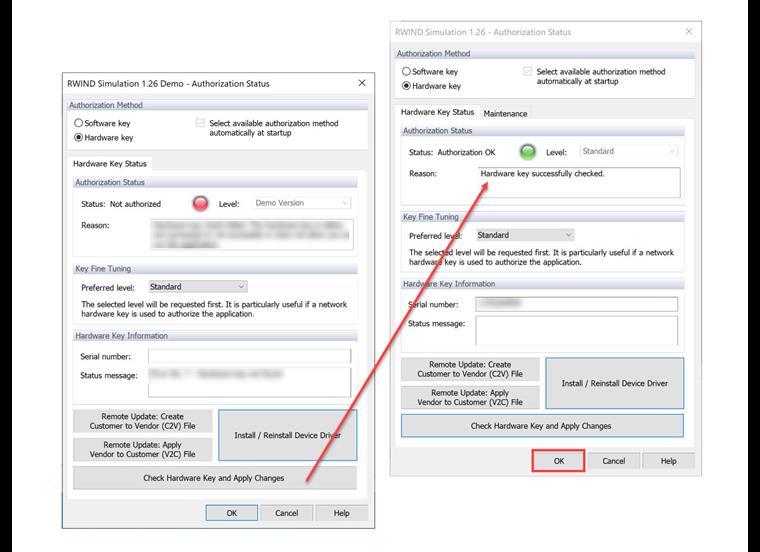

  6. After the hardware key has been completely initialized, authorize the RWIND Simulation program with the "Check Hardware Key and Apply Changes" function and click "OK" to close the dialog box.

    Figure 06 - Authorization

This process can be performed on another computer with the installed version of RWIND Simulation at any time. For a successful authorization, it is only necessary to ensure that either the single-user hardware key is connected to the respective computer or the network hardware key connected to the network computer has free licenses available.
