Highlighting of Min/Max Values of Surface Pressures in RWIND Simulation

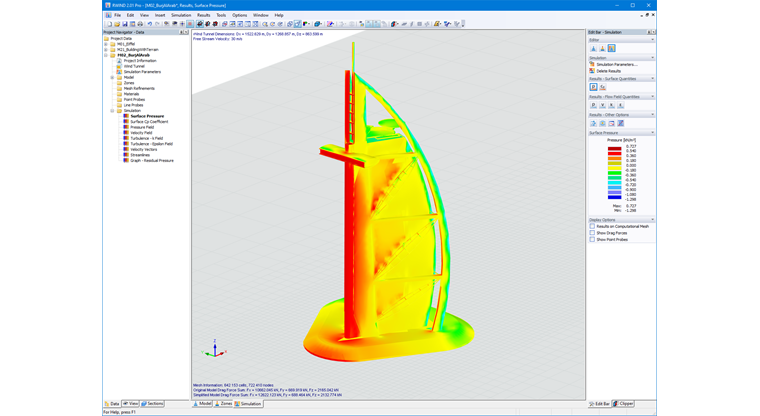

Where in RWIND Simulation can I highlight the locations with the maximum and the minimum surface pressures on the model?

Answer:

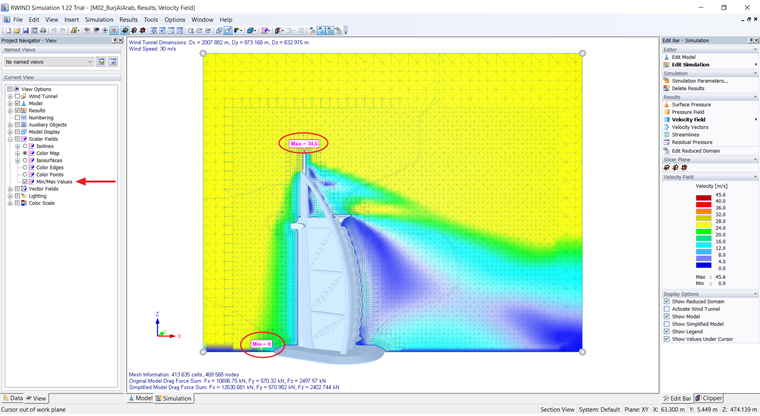

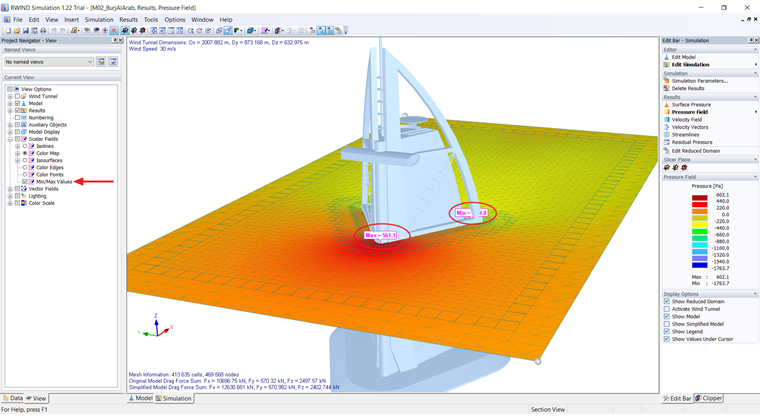

The program provides the "Min/Max Values" option under the "Scalar Fields" branch in the Display navigator. When this option is activated, the result types

are shown in the program with a result bubble in the graphic, including the smallest and the largest globally occurring results.
