Answer:

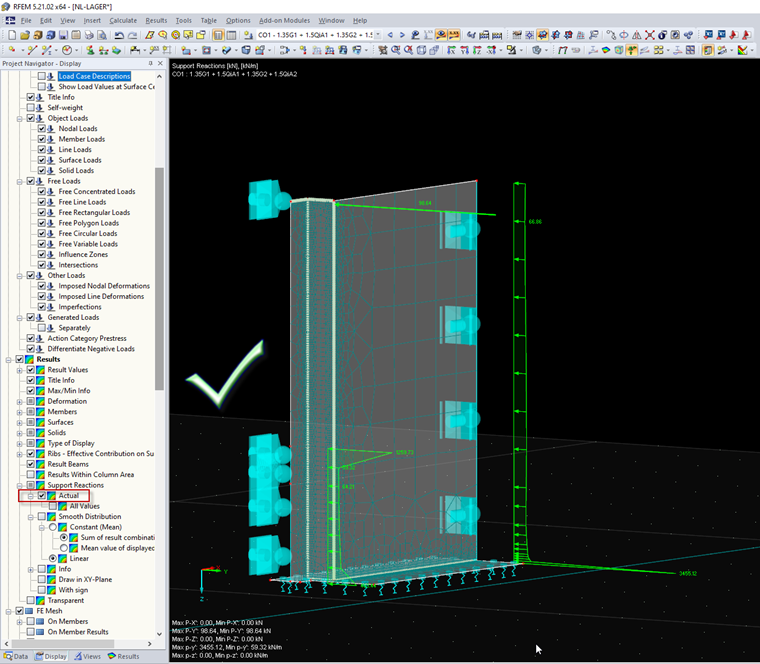

Similarly to surfaces, there are various smoothing options for displaying the results of support reactions. For a nonlinear support, you should always select the actual distribution to display the results.
Question
I have defined a nonlinear line support with failure. Implausible results are displayed during the result evaluation. What can I do?
