FAQ 004384 EN
In my printout report, I noticed that the internal forces of the members are not recorded completely in Table 4.1 for the result combinations. How can I set this correctly?
Answer
Something has been probably changed in the detailed settings of the printout report selection. To check this, open the "RC Results" tab.

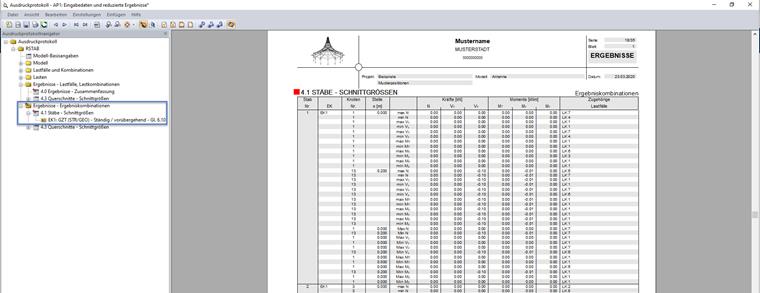

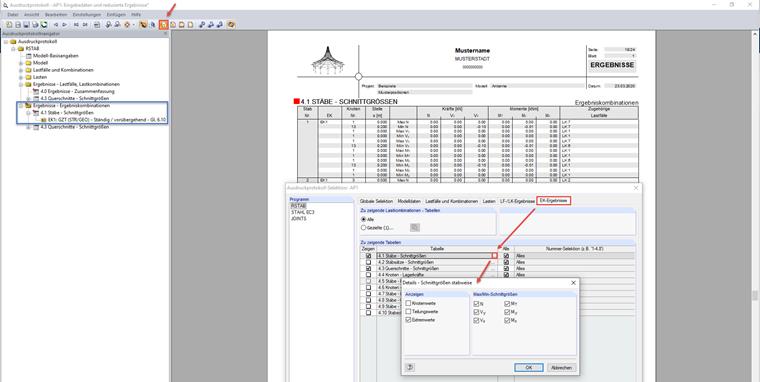

In the "Table" column, some rows have three dots. This indicates a button that you can activate to click in this line. It provides access to further selection criteria, such as the selection of only extreme values for member internal forces (Figure 01) or nodal values and extreme values (Figure 02).
Keywords
Printout report Details Selection
