Answer:
Download the following link:
Rhino Patch
Then:
(1) Please close RFEM and Rhino.
(2) Open the ZIP folder and double click the *.rhi file.

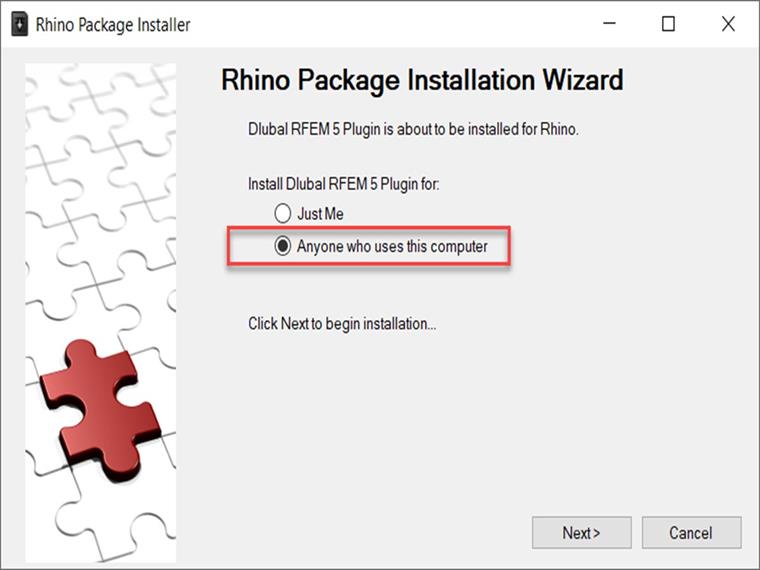

(3) Select the "Anyone who uses this computer" option in the Rhino Package Installer.
Interchangeability of models between RFEM and Rhino
When I try to export/import a model between RFEM and Rhino, I get an error regarding RF-COM. "Export Error: Error to write data, message: The demo version of RF‑COM allows models with a maximum of 12 members, 2 surfaces, and 2 solids only". How do I fix this?
