I want to have an image with the resolution of surface thicknesses using colors in my printout report. For an unknown reason, I cannot display colored areas by dimensions when printing. How can I fix it?

Answer

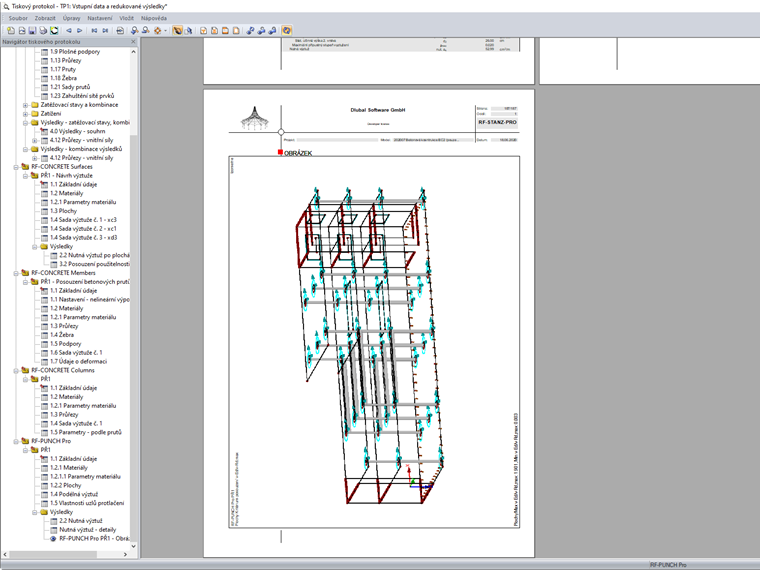

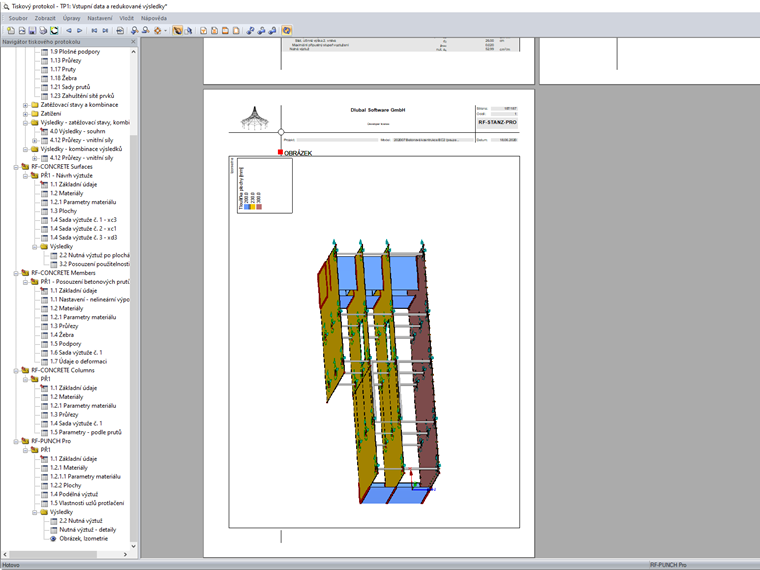

It can happen that the results in the image are also activated. In this case, there is a conflict and thus the colors are not displayed. Right-click the image and select Edit, deactivate the results in the model and return to the printout report. The display should be OK by now.

Keywords

Printout report Image
