How do I find the non-designable locations in the work window?

Answer

There are several ways to find the non-designable locations.

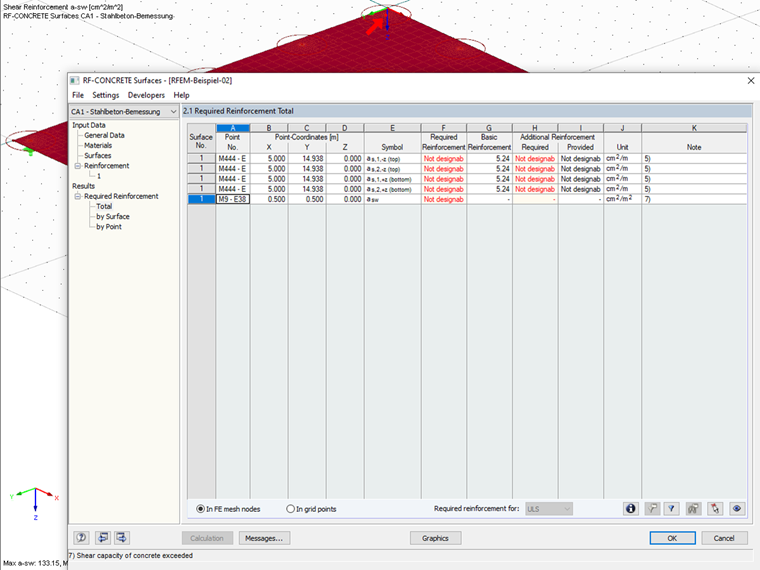

  • If the location is selected by clicking the table row in the add-on module, it is indicated by an arrow in the graphic of the main program (see Figure 01). You can adjust the view by moving the add-on module window to the second screen, if necesary. Furthermore, there is the "Jump to Graphic to Change View" button available in the add-on module.
  • If the add-on module window is closed, you can use the search function by clicking the menu Edit → "Find via Number." In this case, you can enter the FE node number noted previously.
  • If you activate the results of the add-on module in the work window of RFEM and select the result display using "Values on Surfaces," you can select the "Notes Only" result option. The numbered notes are then displayed in the list at the bottom left of the screen.

Keywords

Non-designable location Not designbale Search location
