How can I add cross-section details, such as a cross-section image, stress points, and others, to the printout report?

Answer

The content of the printout report can be defined in the "Printout Report Selection" dialog box. To add the cross-section data, select the check box in Table 1.13 Cross-Sections (RFEM) or Table 1.3 Cross-Sections (RSTAB). Click the [...] button to open the "Cross-Section Details" dialog box (Figure 01), where you can select the details you want.

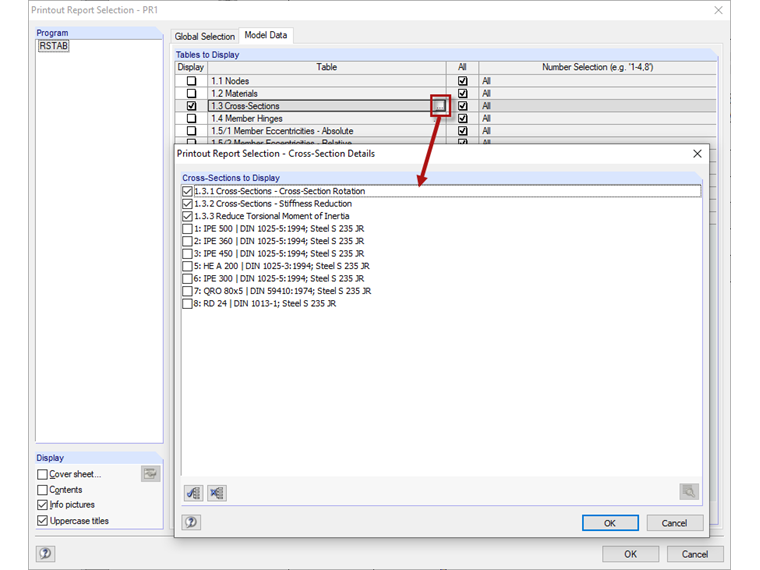

Figure 01 - Printout Report Selection - Cross-Section Details

For multiple selection, press the Ctrl key (single selection) or the Shift key (area selection) and click the relevant entries with the left mouse button (Figure 02).

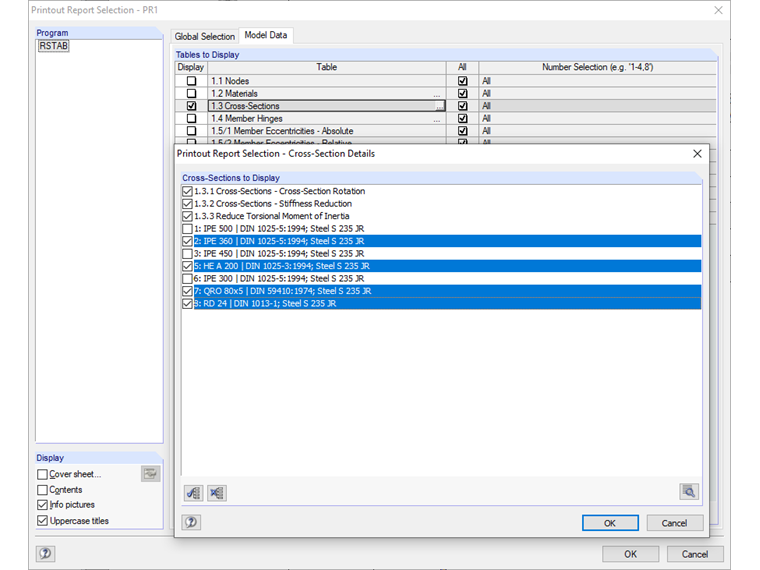

Figure 02 - Cross-Sections to Display (check box selected) and Select (marked in blue)

The scope can be defined by clicking the "Edit Cross-Section Details" button (Figure 03). The entries have an effect on all selected entries (highlighted in blue).

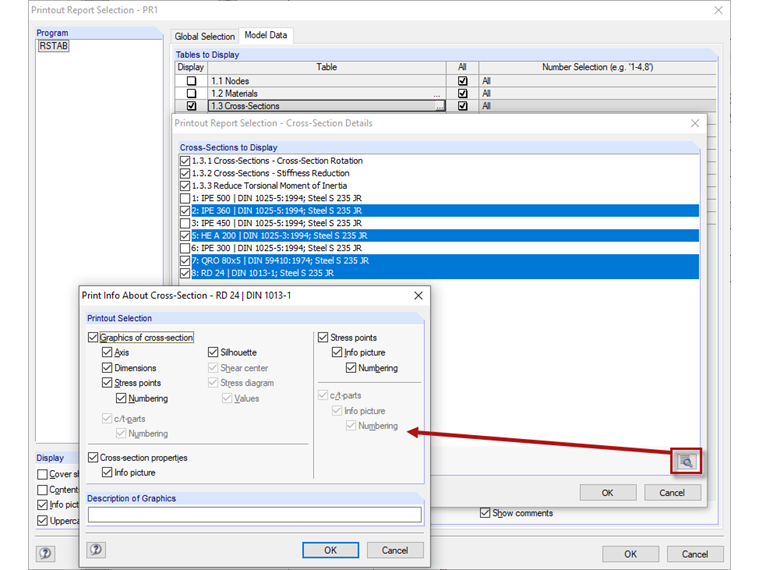

Figure 03 - Print Info About Cross-Section

The video shows how to add the cross-section details of Cross-Sections 2, 5, 7, and 8 to the printout report.
