Affichage des déplacements des nœuds non associés à des lignes dans RFEM

I have modeled two nodes on a surface in RFEM. The results do not show the displacement at these two nodes. How can I obtain it?

Answer:

After creating the two nodes for which you want to display the displacement, you should ensure that they belong to the surface.

FAQ|004814
EN-US | Flag FAQ
[EN] FAQ 004814 | I have modeled two nodes on a surface in RFEM. The results do not show...
Integrated Nodes in Surface
Integrated Nodes in Surface

If these two nodes are not connected to a line, it is necessary to integrate them in the mesh to be considered in the calculation with finite elements.

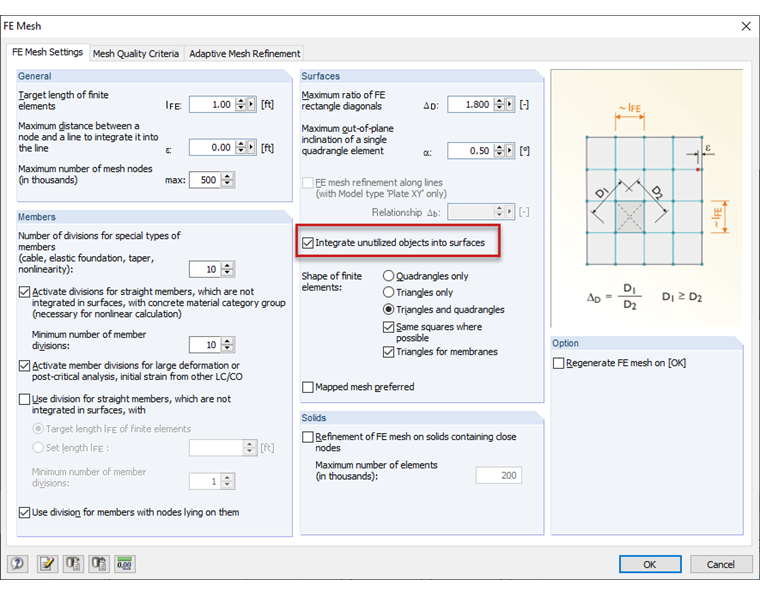

To integrate these objects that are not used in the mesh, click the Calculate menu → FE Mesh Settings, which opens the FE Mesh dialog box. Dans celle-ci, vous cochez la case Intégrer des objets non utilisés dans les surfaces.

FE Mesh | Integrate Unutilized Objects into Surfaces
FE Mesh | Integrate Unutilized Objects into Surfaces

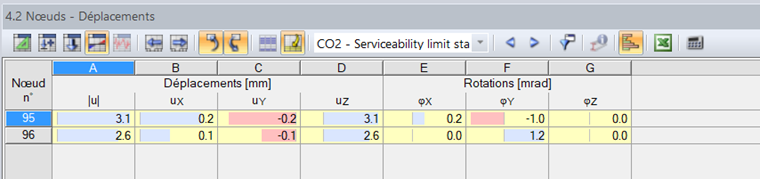

Lorsque le calcul est effectué, vous pouvez afficher le déplacement de ces nœuds dans le tableau 4.2 Nœuds - Déplacements.

Table 4.2 Nodes - Displacements
Table 4.2 Nodes - Displacements
