Cross-Section Design in STEEL EC3

Why do I get a design ratio for the cross-section check according to 6.2.9.1 in the STEEL EC3 add-on module? Why is an * added to Equation (6.36)?

Answer:

In the standard, MEd < MN,Rd is specified under Equation (6.31). However, this condition does not describe the design ratio of the cross-section. Therefore, we have applied Equation (6.36), which describes the determination of MN,Rd, to Equation (6.31) (right side), and rearranged it in such a way that you can display the ratio against 1.

DIN EN 1993-1-1 Sec. 6.2.9.1 Loading M+N
(2)   MEd<MN,Rd
(5)   For welded I-or H-sections
                            MN,y,Rd=Mpl,y,Rd*(1-n)/(1-0.5*a)
(1-0.5*a)*MN,y,Rd=Mpl,y,Rd*(1-n)
                 (1-0.5*a)*MN,y,RdMpl,y,Rd=(1-n)    where   n=NEd/Npl,Rd
   (1-0.5*a)*MN,y,RdMpl,y,Rd+NEdNpl,Rd=1.0
     (1-0.5*a)*M(Ed)Mpl,y,Rd+NEdNpl,Rd<1.0
Formula 6.31 Converted to 6.36 with EC3, Section 6.3.4

Since this equation does not appear in this form in the standard, it is marked with an *.

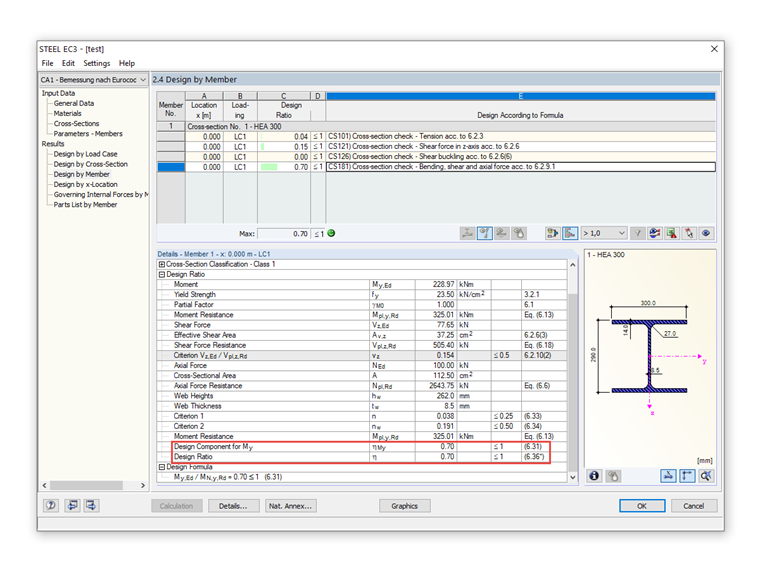

Cross-Section Check
Cross-Section Check
