Answer:

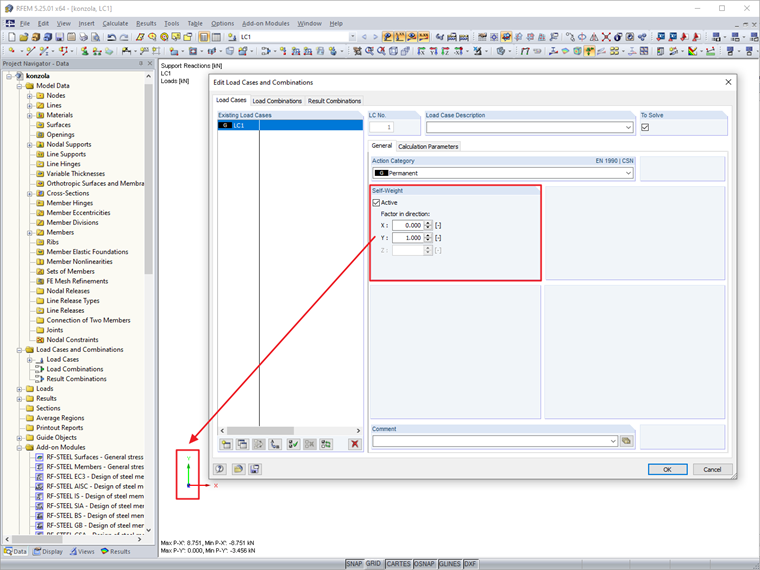

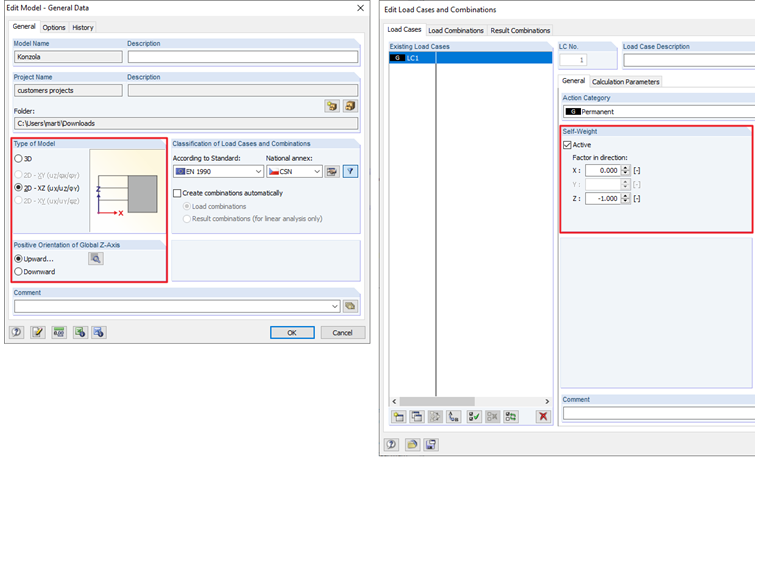

The difference compared to the expected results is due to the calculation of the self-weight of the structure. However, the self-weight acts upwards, so it is subtracted from the resulting reactions instead of being added.
Question
I have created a very simple model to check the manual calculation. I cannot get the expected results. Could you please help me?
