RWIND Simulation Result Export

Is it possible to export RWIND Simulation results into a GIS software or any other external program?

Answer:

RWIND Simulation results are stored as a VTK format (.vtp and .vtu files) located in the working directory of the project.

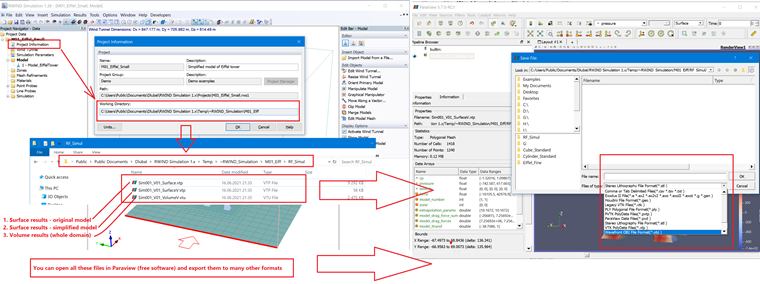

FAQ 005027 | Is it possible to export the results from RWIND Simulation to GIS software or another external program?
Stored Results File in RWIND Simulation Working Directory

The files can be opened in ParaView which is an open source software available at the following website:

The data can be further exported to many other formats. Because ParaView is an open source software and allows the use of custom plugins, it is possible to export data to any custom format.

For more information on ParaView, refer to FAQ 4825.
