Answer:
The result beam is a special element and the division settings in the Calculation Parameters are not applied.

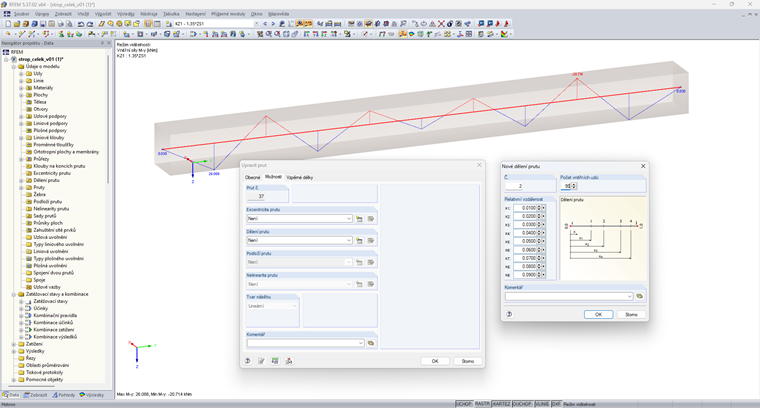

It is necessary to set the division in Beam Properties → Options → Beam Division.
Dividing Member

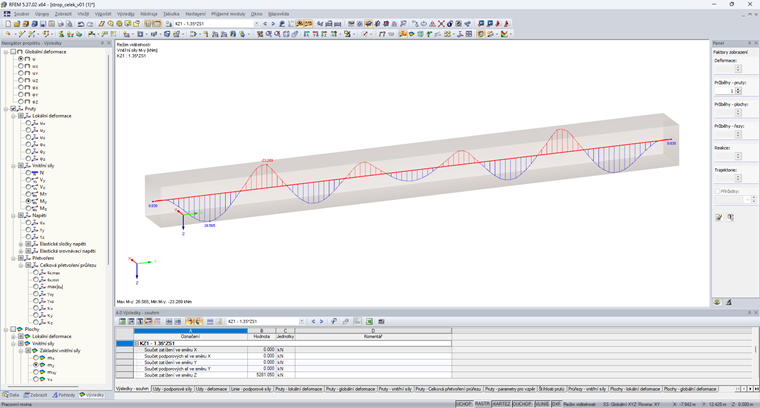

I have a result beam in my model, but the bending moment is only linear. Given the load, I would expect a parabolic curve. This does not change even with a higher division density for beams in the Calculation Parameters. What could be the cause?
