Furthermore, the plane of the offset can be changed before placing the comment text. You can also rotate the text.
In addition to the model objects, grid points can be snapped and provided with a comment.

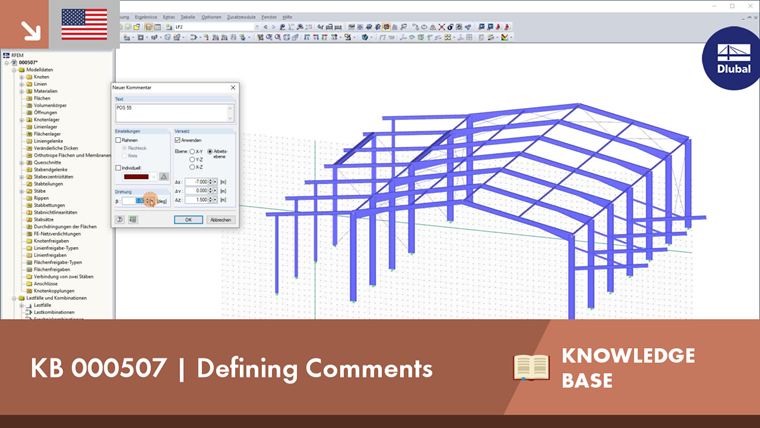

Defining Comments

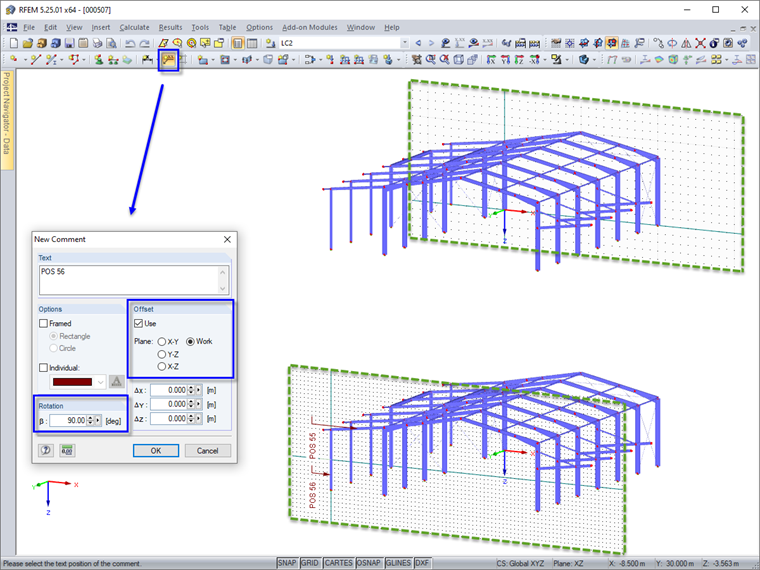

In RFEM and RSTAB, you can add a comment to model objects in the graphic. When inserting a comment, the origin of the current work plane automatically jumps temporarily to the same plane in which the comment is placed. This prevents comments from being accidentally placed very far from the object.
