Among the advantages of the elastic-plastic calculation in RFEM are the calculation time and number of necessary iterations. Furthermore, the material can now save plastic distortions or deformations in every load increment and use them for the next calculation steps. With this material behavior, it is thus possible to take into account the loading and unloading of a material, whereby the plastic deformation in the material is preserved.

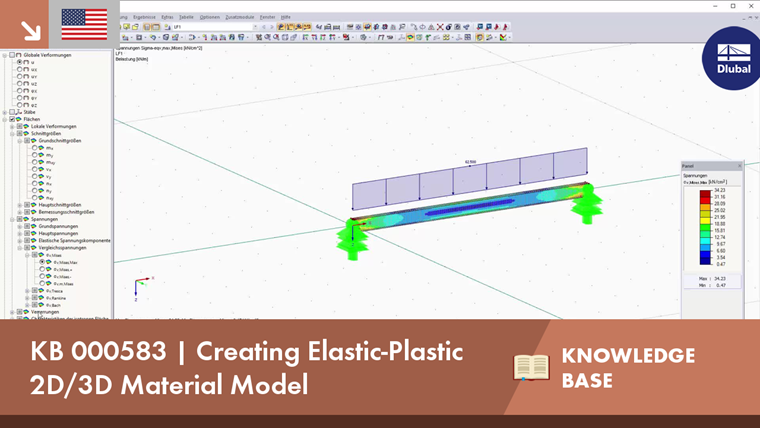

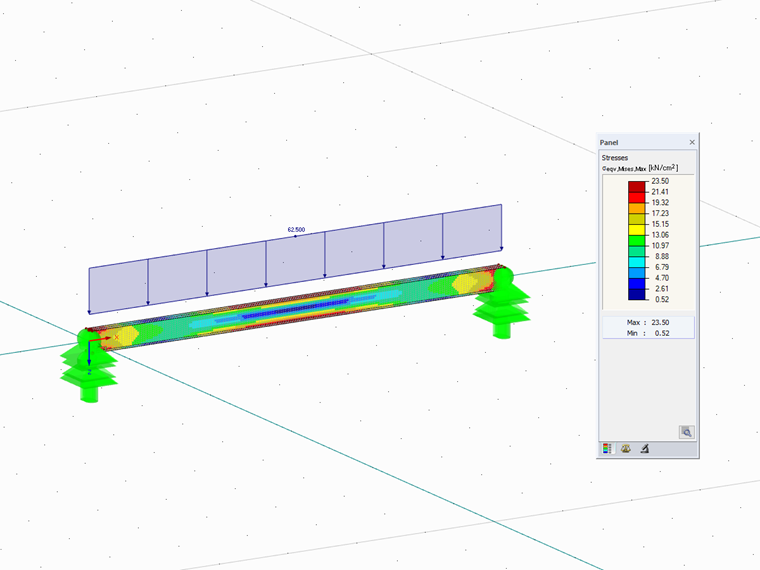

Creating Elastic-Plastic 2D/3D Material Model
The elastic‑plastic material model in RFEM 5 allows you to calculate surfaces and solids with plastic material properties and to carry out a stress evaluation. This material model is based on the classic von Mises plasticity.
