During export, the exact geometry, cross‑section information, member type, and release data are transferred. In the ISM viewer, you can view a rendered 3D model. Moreover, you can call up detailed information about every element.
Exchanging Data via ISM File

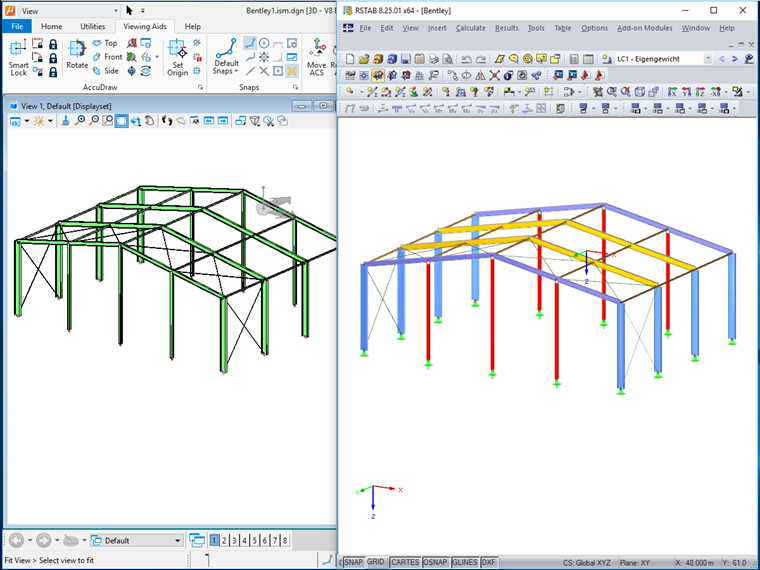

The ISM file (ISM = Integrated Structural Modeling) in RFEM and RSTAB provides an interesting option for exchanging data. If you export a model to this data format, you can view and analyze it with the free ISM viewer from Bentley.
