Filtering Result Values on Surfaces

Tips & Tricks

1 October 2013

000664

Tips & Tricks

Results

RFEM

In many cases, it is necessary to filter the results for the display of values on surfaces so as not to show all the numbers. In displaying the reinforcement arrangement, you can, for example, hide values that are below the already used basic reinforcement.

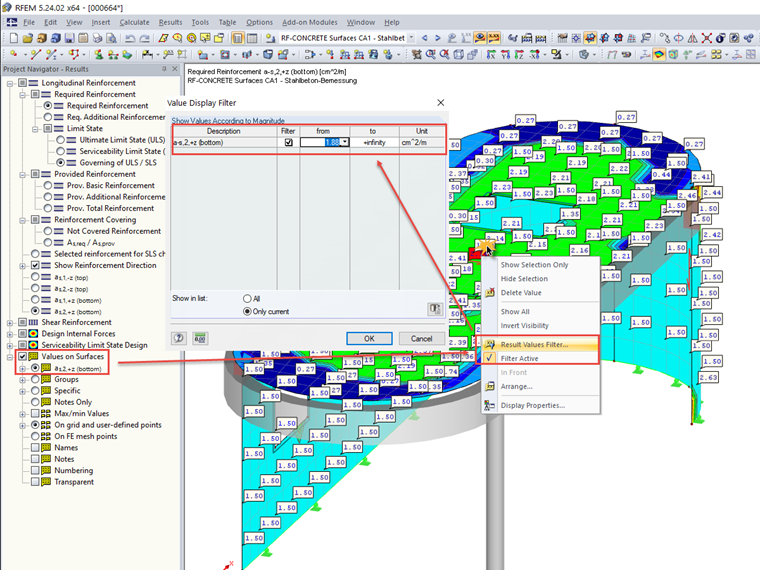

To start the filtering, right‑click the selected “Values on Surfaces” check box, and then click “Result Values Filter” on the context menu. A dialog box appears where you can set the filter options for the current or all values. Upon clicking [OK], the filtered values are shown in the work window. By using the context menu mentioned above, you can display or hide the values.
