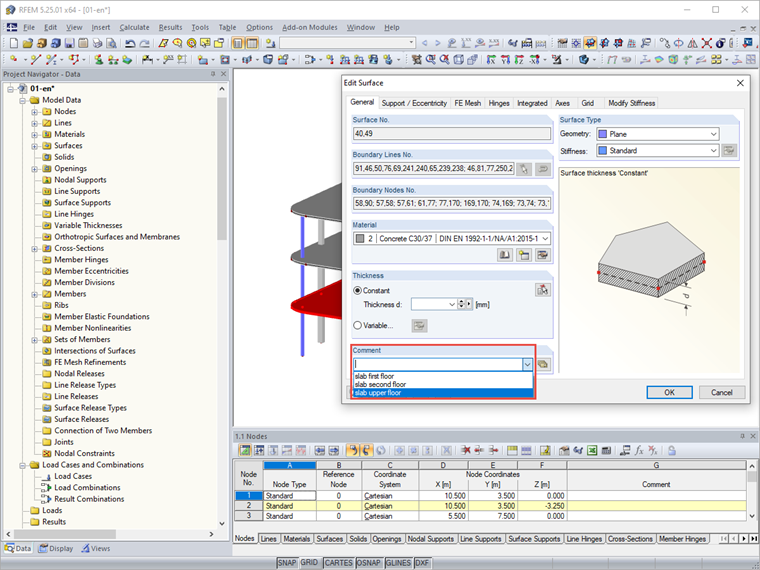

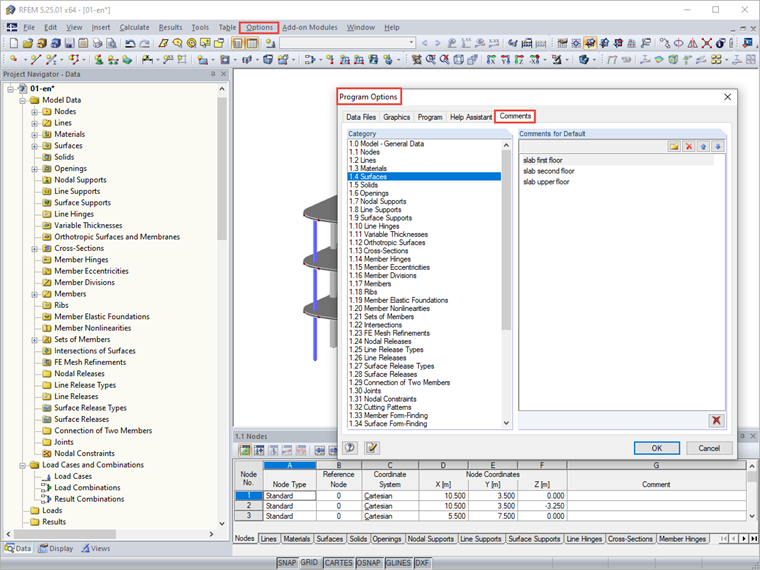

If you want to allocate user‑defined comments, which are often identical, they can be created in "Program Options" so that they are available later in the drop‑down list of the respective comment.
Presetting Comments
You can assign comments to each element in RFEM and RSTAB (structure element, load element, and so on). This can help to improve the overview and documentation of structures, as the comments appear in the printout report and, for example, certain objects can be filtered and displayed using the "Select Special" function.
