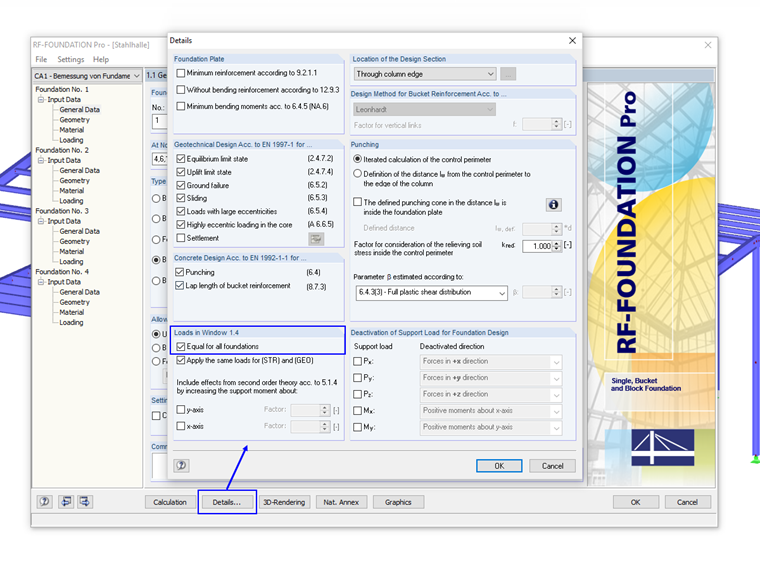

When defining several different foundations in one module case, the loading must be defined for each foundation. In the detail settings of the module case, in the "Loads in Window 1.4" section, you can find the "Equal for all foundations" function. By selecting this function, you apply the same loads to all foundations. This reduces the effort for defining loads to one foundation.
