Color Panel of Cross-Sections

Tips & Tricks

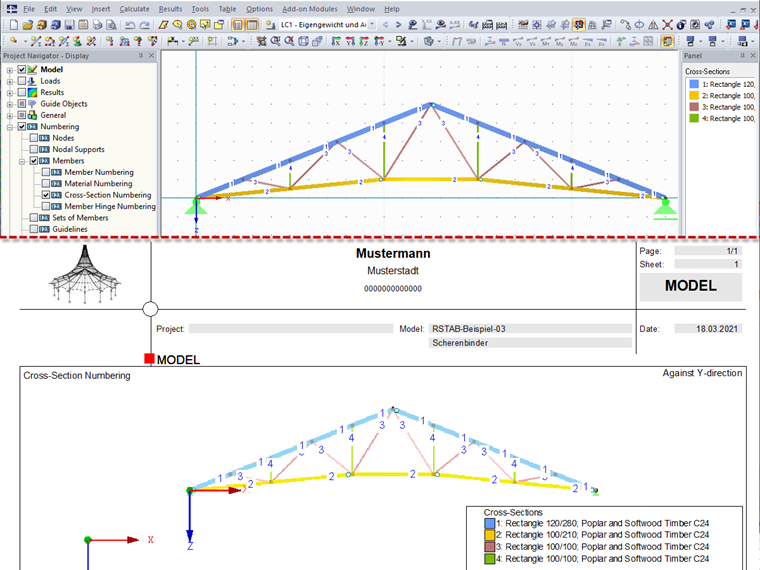

For a quick overview of the used cross‑sections, you can show the members in color sorted by cross‑section. Right‑click in the work window, and select on the context menu “Colors in Graphics According to” -> “Cross‑Sections”. In the current program versions, you can use a panel with an editable colour scale for this.

For a clearly‑presented documentation, you can also number the cross‑sections. When printing a graphic, this will also appear in the printout report.
