However, nonlinear effects should be deactivated for test purposes only; for example, to find the causes of model instabilities, since these nonlinearities are sometimes responsible for calculation failures.

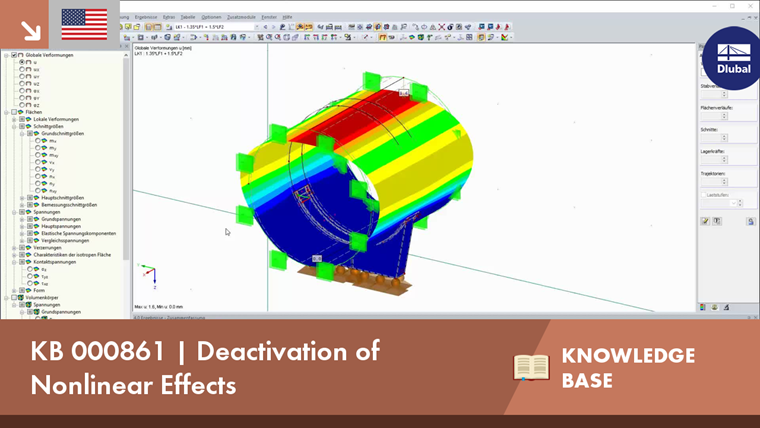

Deactivation of Nonlinear Effects

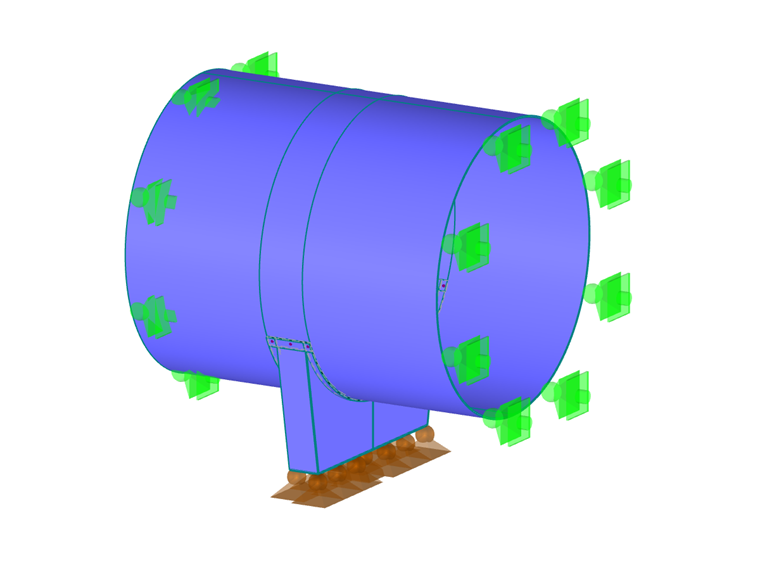

If nonlinear effects - such as failing supports, foundations, member nonlinearities, or contact solids - are used in the model, you can deactivate them in the global calculation parameters.
Author
Mr. Langhammer is responsible for development in the area of reinforced concrete structures, and provides technical support to our customers.
