Methods of Supporting Plates by Columns

Technical Article

In the case of plate structures, it is always necessary to consider the realistic definition support conditions. Depending on the way of defining the flexibility of the supports, clear differences may occur in the results.

For example, the columns should be modelled using members. Since the plate elements do not have rotational degrees of freedom, it is not possible to consider rotational springs. Therefore, it is important to model the member connection as close to reality as possible.

The example described in this article provides a comparison of different column models. The model is a plate made of the concrete C25/30 with the dimensions of 0.24 m ∙ 6.5 m ∙ 2.5 m. The columns have the dimensions of 0.24 m ∙ 0.45 m ∙ 2.5 m.

Model 1

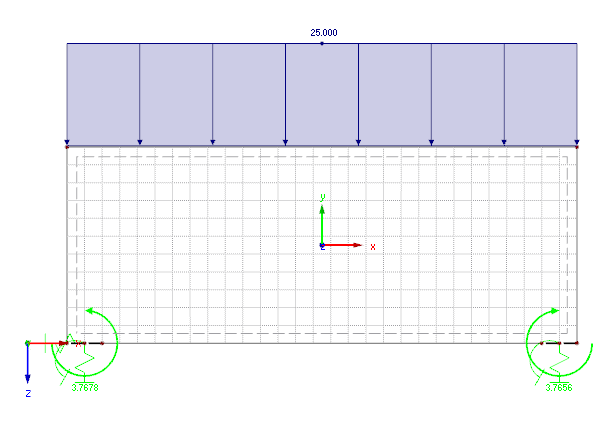

This model applies a rigid coupling over the column width by using member elements. In the middle of this coupling, there is a nodal support with the following spring stiffnesses.

Axial force spring:

$${\mathrm C}_{\mathrm u,\mathrm z'}\;=\;\frac{{\mathrm E}_\mathrm c\;\cdot\;{\mathrm A}_\mathrm c}{\mathrm I}\;=\;\frac{30.5\;\mathrm{kN}/\mathrm m²\;\cdot\;106\;\cdot\;(0.24\;\mathrm m\;\cdot\;0.45\;\mathrm m)}{2.5\;\mathrm m}\;=\;1,317,600\;\mathrm{kN}/\mathrm m$$

Rotational spring:

$${\mathrm C}_{\mathrm\varphi,\mathrm y'}\;=\;\frac{4\;\cdot\;{\mathrm E}_\mathrm c\;\cdot\;{\mathrm I}_\mathrm c}{\mathrm I}\;=\;\frac{4\;\cdot\;30.5\;\cdot\;106\;\cdot\;0.24\;\cdot\;0.453\;/\;12}{2.4}\;=\;88,938\;\mathrm{kNm}/\mathrm m$$

The advantage of this model is that it is not necessary to enter the columns themselves. Furthermore, you can very easily avoid singularities by using nodal supports. However, the spring values of the nodal support must be manually determined in advance.

Figure 01 - Model 1

Model 2

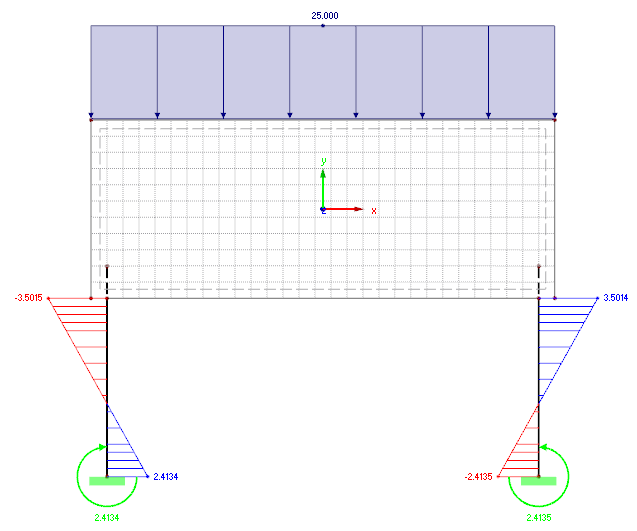

In this model, the members of the supports continue to one or two sets of elements of the FE mesh network in the wall surface. The goal is to determine the connection between the support and the wall surface approximately close to reality. The advantage of this method is that it is not necessary to determine the springs manually and the connection can be modelled very quickly. However, since the internal force distributions in the connection zone of the supports are often disturbed in the plate, this option can only be recommended in dependence on the model.

Figure 02 - Model 2

Model 3

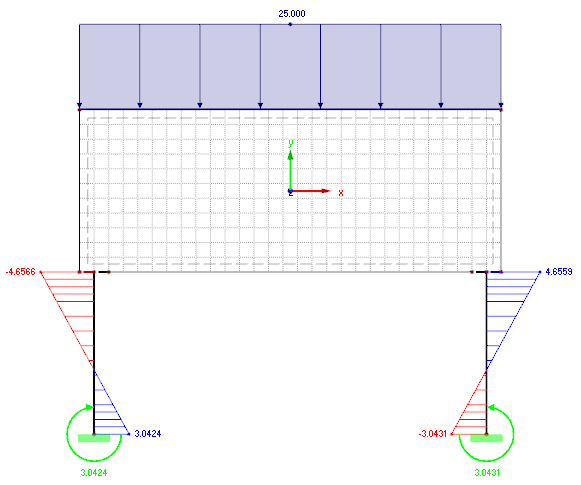

In contrast to Model 2, the supports are not extended into the wall surface, but instead connected to the plate in the same way as in Model 1. The coupling stiffness should be defined sufficiently high. The advantage of this model is that the modelling is relatively fast and simple. In this case, it is also not necessary to manually determine the spring values in advance. You can also avoid the disadvantages of Model 2.

Figure 03 - Model 3

Model 4

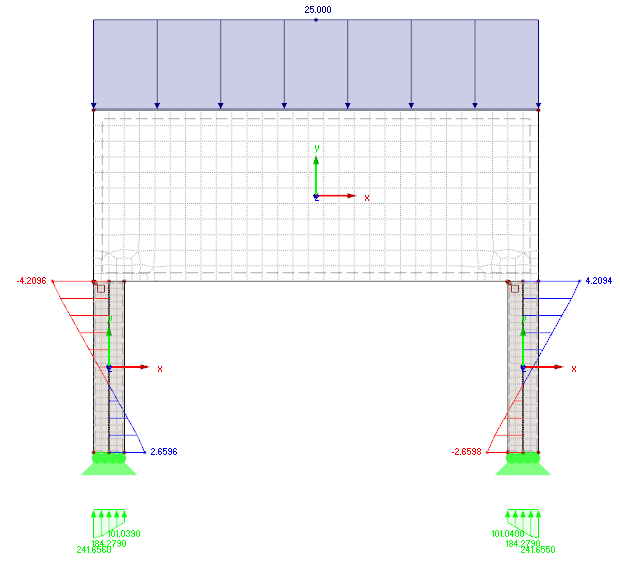

In Model 4, the columns are modelled using surfaces with the corresponding dimensions. In order to see the comparison of the moment distribution on all of the models, the result members are defined in the middle of the columns. Thus, the surface results are integrated and the resulting internal forces are obtained. It is also possible to design these members in the RF-CONCRETE Members add-on module, for example.

Figure 04 - Model 4


Generally speaking, all models should avoid singularities by using nodal supports. All models can be created very close to reality by modelling the columns on the plate as a nodal support. The difference between the results in Model 1 can be explained by the fact that the horizontal stiffnesses of the column is completely omitted.


[1]  Werkle, H. (2008). Finite Elemente in der Baustatik: Statik und Dynamik der Stab- und Flächentragwerke, (3rd ed.). Wiesbaden: Springer Vieweg.
[2]  Rombach, G. (2006). Anwendung der Finite-Elemente-Methode im Betonbau - Fehlerquellen und ihre Vermeidung, (2nd ed.). Berlin: Ernst & Sohn.
