Punching Shear Design with Definition of Perimeters

  • Knowledge Base

Technical Article

With RF-PUNCH Pro, the punching shear design can be performed according to 6.4, EN 1992-1-1. In the following example, the design according to DIN EN 1992-1-1 will be presented first with automatic design of the inner and outer perimeters and then on the basis of the inner perimeters defined by the user on a simple example.

previous technical article should be mentioned here where the punching shear design in general according to [1] and [2] as well as the features of the RF-PUNCH Pro add-on module have been explained.

Example Model

The punching shear design will pe performed for a 25 cm thick reinforced concrete floor with concrete grade C30/37. The column dimensions amount to 25 x 25 cm.

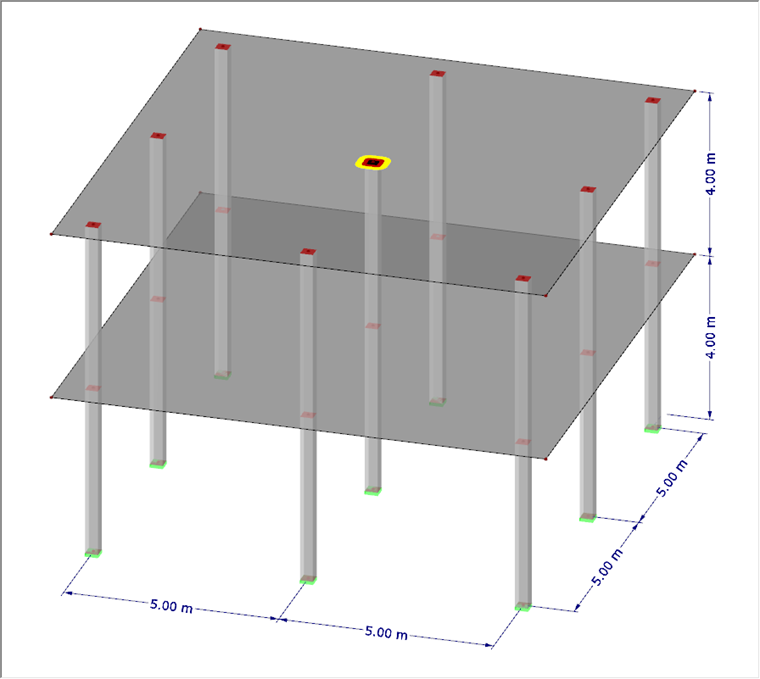

Figure 01 - Example Model

In the further course, the punching shear design for the internal column at the connection to the floor over the ground floor will be performed only. See also the colored punching shear point in Figure 01. From the determination of internal forces in RFEM results an axial force of Nd = 442.21 kN at the column head in the internal column on the first floor.

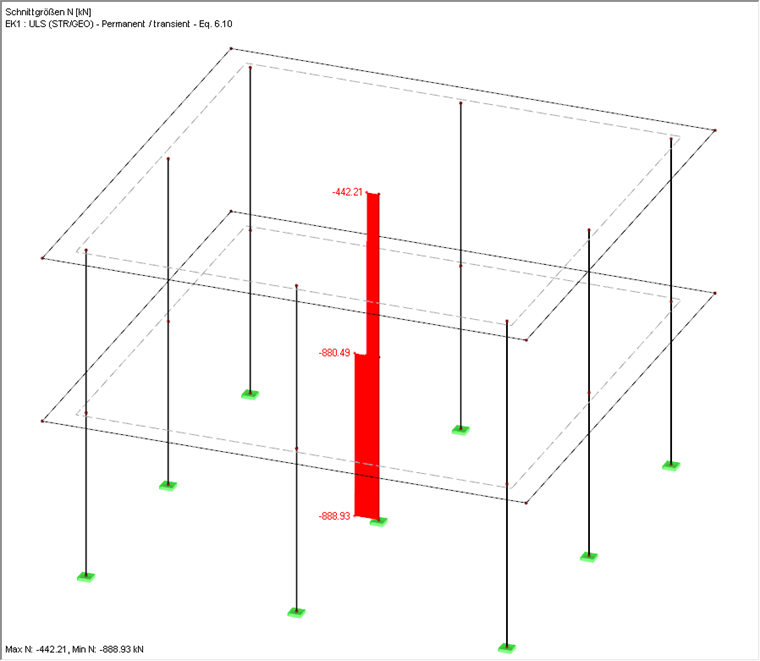

Figure 02 - Normal Force Distribution in Columns

Analysis with Designed Perimeters

If a punching shear design is performed in RF-PUNCH Pro, the perimeters necessary for the design (control perimeter, inner and outer perimeters) will be created automatically in the add-on module. Moreover, the default settings for the "applied punching load" or the "load increasing factor ß" can be maintained always as a general rule.

In this example, the punching load should also be used from the axial force of the column. However, the load increasing factor ß will be determined on the basis of the "constant factors" according to 6.4.3 (6). For this situation (inner column), this results in a load increasing factor ß = 1.10.

Instead of the default settings, an existing longitudinal reinforcement will be defined as well for the design of the punching shear resistance. This means that the add-on module automatically sets a shear reinforcement as soon as the defined longitudinal reinforcement on the top surface of the plate is not sufficient and νRd,c < νEd.

Furthermore, the existing longitudinal reinforcement on the top surface of the plate (side without loading) will be defined with Ø 12 - 10 in both reinforcement directions which corresponds to a reinforcement content of 11.31 cm²/m.

Figure 03 - Details of Node of Punching Shear for Analysis with Designed Perimeters

It should be noted the position of the longitudinal reinforcement (Ø 12 - 10). The reinforcement to be considered for the design should meet in this case a concrete cover of cnom = 3.5 cm. This has to be defined in Table "1.4 Longitudinal Reinforcement" before starting the design. For this purpose, the position of the reinforcement in direction 1 will be defined with d1 = cnom + ds/s = 3.5 + 1.2/2 = 4.1 cm. The concrete cover in direction 2 thus results in d2 = d1 + ds = 5.3 cm. The definition of the concrete cover in Table "1.4 Longitudinal Reinforcement" determines the dimension of the static depth d and has to be adjusted accordingly before starting the calculation.

After having performed the calculation for the inputs mentioned above, the design criteria are displayed in result table "2.1 Punshing Shear Design". A punching shear resistance νRd,c = 612.05 kN/m² is produced. This results in a design criteria of 110 %. The punshing shear resistance without the punching shear reinforcement is thus not sufficient.

Since νRd,c = 612.05 kN/m² < νEd = 674.80 kN/m², the maximum punchiing shear resistance νRd,max will be checked. According to 6.4.5 (3), [2] νRd,max results in:
νEd,u1 ≤ νRd,max = 1.4 · νRd,c,u1
νEd,u1 = 674.80 kN/m²
νRd,max = 1.4 · 612.05 kN/m² = 856.87 kN/m²
This design is kept with νEd = 674.80 kN/m² < νRd,max = 856.88 kN/m² with a ratio of 79 % so that the module automatically starts with the design of the inner perimeter and outer perimeters.

The position of the outer perimeter results in, according to 6.4.5 (4) Equation 6.54:
uout = ß · VEd / (νRd,c · d)
Note: νRd,c for the shear resistance without shear reinforcement according to 6.2.2 (1)

With this formula, it is possible to determine the diameter of the outer perimeter and thus the distance lw,a from the outer perimeter to the edge of the load surface. Thus, it is possible to determine the "area reinforced against punching shear". According to 9.4.3 [1], the first inner perimeter can be arranged with a distance of 0.5 d from the load surface.  The last inner perimeter is 1.5 d before the outer perimeter. See also Figure 2.36 in [3].

With these approaches, the module can determine number and distances of the necessary inner perimeters automatically. This is also the case in RF-PUNCH Pro according to the default design settings, which always results in a design criterion of 1.00 in Table "2.1 Punching Shear Design" for the design of the diagonal strut as well as the outer perimeter.

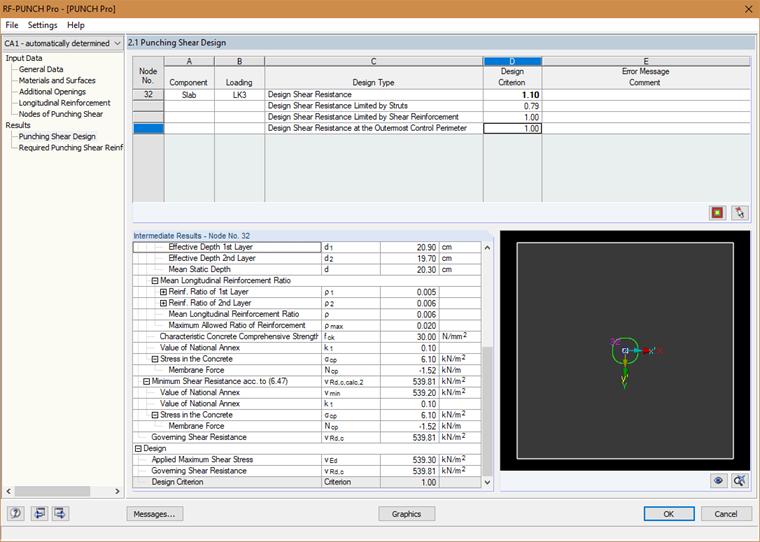

Figure 04 - Design Criteria for Analysis with Designed Perimeters

Result table "2.2 Required Punching Shear Reinforcement" shows the longitudinal and shear reinforcement belonging to the design criteria displayed. The detail tables show, for example, the distance of the single inner perimeters (shear reinforcement series) from the edge of the load introduction.

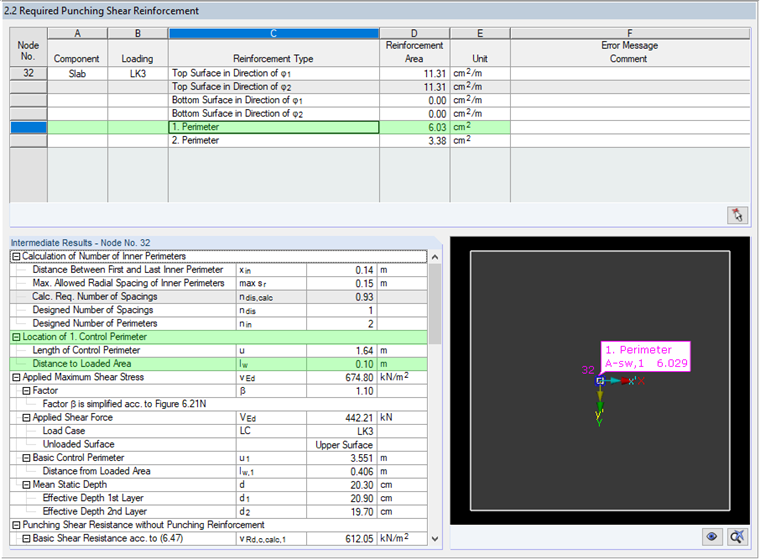

Figure 05 - Detail Tables with Documented Position of Shear Reinforcement

Design with Defined Perimeters

The design of the automatic position of the inner perimeters leads for this example for the first shear series to a distance from the edge of the load ontroduction of 10 cm. This value (see Figure 05) is documented in the result details with lw for each of the designed perimeters. For the second inner perimeter, it results in lw,2 = lw,1 + sr = 0.10 m + 0.14 m = 0.24 m.

In RF-PUNCH Pro, the user has also the option to define directly the position of the outer and inner perimeters. To do this, it is necessary to activate the option "Perimeters" in Table "1.5 Nodes of Punching Shear" before starting the design. This allows, as shown in this example, to define number and position of the "Inner Perimeters".

As an alternative to the automatic designed two inner perimeters, it is possible to calculate now, for example, with three inner perimeters. It is possible to define here the number and distance of the load surface to the first inner perimeter lw,1 and the distances between the inner perimeters sr.

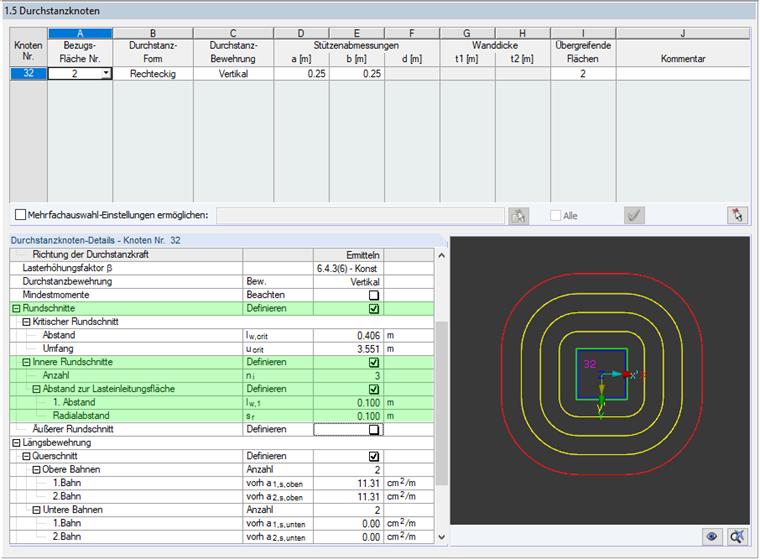

Figure 06 - Definition of Inner Perimeters in Table 1.5

After the calculation, the necessary longitudinal and punching shear reinforcement is also displayed in result table "2.2. Required Punching Shear Reinforcement" with the calculated required reinforcement areas per perimeter.

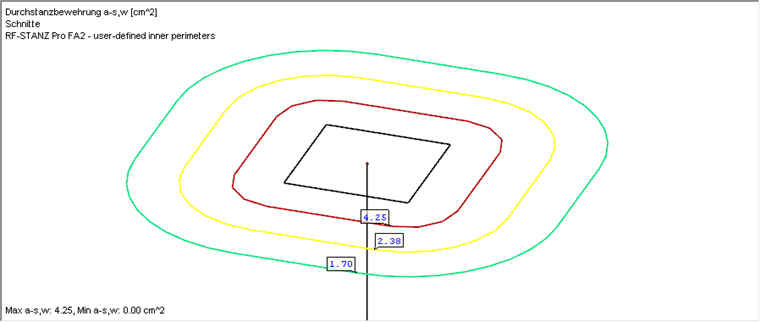

Figure 07 - Results Grapic with Defined Inner Perimeters

If the requirements according to 9.4.3 [1] concerning the position of the single inner perimeters or the outer perimeter - for example radial distance sr of the inner perimeters among each other (≤ 0.75 d) or the distance from the last inner to the outer perimeter (≤ 1.5 d) - have not been met, a corresponding notice will be displayed in result table "2.2 Required Punching Shear Reinforcement". Thus, it is possible to recognize and solve a wrong entry quickly.

Applications and Further Information

In most cases, the punching shear design with RF-PUNCH Pro will certainly be performed in such a way that the longitudinal reinforcement is increased to a practicable degree for construction to avoid the punching shear reinforcement in the shape of shear stirrups.  If the required longitudinal reinforcement  - even if the maximum longitudinal reinforcement ratio φl has not yet been achieved - is no more possible in building practice, RF-PUNCH Pro offers the possibility to design the required punching shear reinforcement in the form of shear stirrups (vertical or inclined) automatically. Alternatively, the engineer has additionally the option to export the punching load and the punching geometry to the design program Halfen HDB, in which, as an alternative to shear stirrups, shear rails can be designed.

Irrespective of this, it may happen that an already designed punching shear reinforcement should be analyzed on a modified load situation. To enable this kind of "recalculation" or to elaborate an alternative reinforcement concept for the reinforcement planning, RF-PUNCH Pro offers the already mentioned options of "Definition of Perimeters".

In this respect, reference is made to Section in the RF-PUNCH Pro manual. The flowcharts for the punching shear design with punching shear reinforcement are documented there so that also the single steps for the design of the required shear reinforcement can be understood.


Dipl.-Ing. (FH) Paul Kieloch

Dipl.-Ing. (FH) Paul Kieloch

Product Engineering & Customer Support

As technical support, Mr. Kieloch answers the questions of Dlubal Software customers, and is responsible for the development of the add-on modules for reinforced concrete structures.


[1]   Eurocode 2: Design of concrete structures - Part 1-1: General rules and rules for buildings; EN 1992-1-1:2011-01
[2]   National Annex - Nationally determined parameters - Eurocode 2: Design of concrete structures - Part 1‑1: General rules and rules for buildings; DIN EN 1992‑1‑1/NA:2013‑04
[3]   Manual RF-PUNCH. (2015). Tiefenbach: Dlubal Software.
