CONCRETE | Design

Before the calculation starts, you should check the input data using the program function. Then, the CONCRETE add‑on module searches the results of relevant load cases, load as well as result combinations. If these cannot be found, RSTAB starts the calculation to determine the required internal forces.

Considering the selected design standard, the required reinforcement areas of the longitudinal and the shear reinforcement as well as the corresponding intermediate results are calculated. If the longitudinal reinforcement determined by the ultimate limit state design is not sufficient for the design of the maximum crack width, it is possible to increase the reinforcement automatically until the defined limit value is reached.

The design of potentially unstable structural components is possible using a nonlinear calculation. According to a respective standard, different approaches are available.

The fire resistance design is performed according to a simplified calculation method in compliance with EN 1992‑1‑2, 4.2. The module uses the zone method mentioned in Annex B2. Furthermore, you can consider the thermal strains in the longitudinal direction and the thermal precamber additionally arising from asymmetrical effects of fire.

• Import of results from RSTAB
• Integrated material and cross-section library
• The module extension EC2 for RSTAB enables design of reinforced concrete according to EN 1992-1-1 (Eurocode 2) and the following National Annexes:
  • DIN EN 1992-1-1/NA/A1:2015-12 (Germany)
  • ÖNORM B 1992-1-1:2018-01 (Austria)
  • Belgium NBN EN 1992-1-1 ANB:2010 for design at normal temperature, and NBN EN 1992-1-2 ANB:2010 for fire resistance design (Belgium)
  • BDS EN 1992-1-1:2005/NA:2011 (Bulgaria)
  • EN 1992-1-1 DK NA:2013 (Denmark)
  • NF EN 1992-1-1/NA:2016-03 (France)
  • SFS EN 1992-1-1/NA:2007-10 (Finland)
  • UNI EN 1992-1-1/NA:2007-07 (Italy)
  • LVS EN 1992-1-1:2005/NA:2014 (Latvia)
  • LST EN 1992-1-1:2005/NA:2011 (Lithuania)
  • MS EN 1992-1-1:2010 (Malaysia)
  • NEN-EN 1992-1-1+C2:2011/NB:2016 (Netherlands)
  • NS EN 1992-1 -1:2004-NA:2008 (Norway)
  • PN EN 1992-1-1/NA:2010 (Poland)
  • NP EN 1992-1-1/NA:2010-02 (Portugal)
  • SR EN 1992-1-1:2004/NA:2008 (Romania)
  • SS EN 1992-1-1/NA:2008 (Sweden)
  • SS EN 1992-1-1/NA:2008-06 (Singapore)
  • STN EN 1992-1-1/NA:2008-06 (Slovakia)
  • SIST EN 1992-1-1:2005/A101:2006 (Slovenia)
  • UNE EN 1992-1-1/NA:2013 (Spain)
  • CSN EN 1992-1-1/NA:2016-05 (Czech Republic)
  • BS EN 1992-1-1:2004/NA:2005 (United Kingdom)
  • CPM 1992-1-1:2009 (Belarus)
  • CYS EN 1992-1-1:2004/NA:2009 (Cyprus)
• In addition to the National Annexes (NA) listed above, you can also define a specific NA, applying user‑defined limit values and parameters.
• Optional presetting of partial safety factors, reduction factors, neutral axis depth limitation, material properties, and concrete cover
• Determination of longitudinal, shear, and torsional reinforcement
• Design of tapered members
• Cross‑section optimization
• Representation of minimum and compression reinforcement
• Determination of editable reinforcement proposal
• Crack width analysis with optional increase of the required reinforcement in order to keep the defined limit values of the crack width analysis
• Nonlinear calculation with consideration of cracked cross‑sections (for EN 1992‑1‑1:2004 and DIN 1045‑1:2008)
• Considering tension stiffening
• Considering creep and shrinkage
• Deformations in cracked sections (state II)
• Graphical representation of all result diagrams
• Fire resistance design according to the simplified method (zone method) according to EN 1992‑1‑2 for rectangular and circular cross‑sections. Thus, fire resistance design of brackets is possible as well.

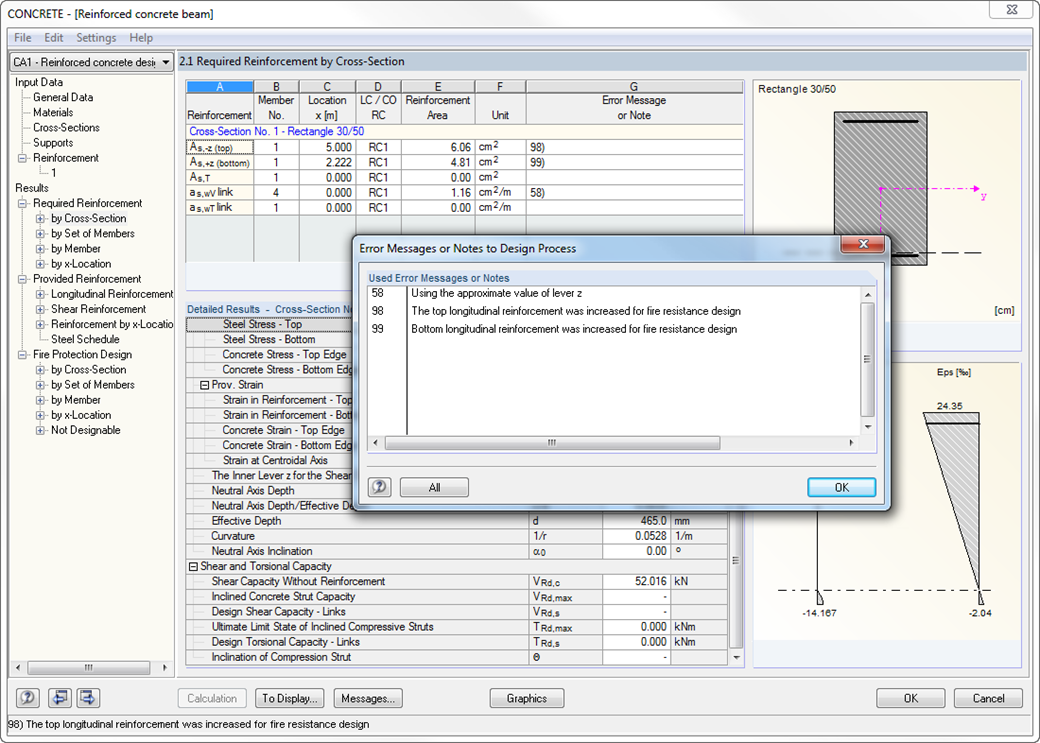

After the calculation, the module shows clearly arranged tables listing the required reinforcement and the results of the serviceability limit state design. All intermediate values are included in a comprehensible manner. In addition to the tables, current stresses and strains in a cross‑section are represented graphically.

The reinforcement proposals of the longitudinal and the shear reinforcement, including sketches, are documented in accordance with current practice. It is possible to edit the reinforcement proposal and to adjust, for example, the number of members and the anchorage. The modifications will be updated automatically.

A concrete cross‑section, including reinforcement, can be visualized in a 3D rendering. This way, the program provides an optimal documentation option to create reinforcement drawings, including steel schedule.

Crack width analyzes are performed using the selected reinforcement of internal forces in the serviceability limit state. The result output covers steel stresses, the minimum reinforcement, limit diameters, and the maximum bar spacing, as well as crack spacing and the maximum crack widths.

As a result of the nonlinear calculation, there are the ultimate limit states of the cross‑section with defined reinforcement (determined linear elastically) as well as effective deflections of the member considering stiffness in cracked state.
