RX-TIMBER Column | Features

Product Feature

This article was translated by Google Translator View original text

000443

19 December 2016

General RX-TIMBER Timber Structures Eurocode 5

  • Design of the following column types:
    • Hinged column, optionally with elastic restraint of head or footing
    • Bracket, optionally with elastic restraint of footing

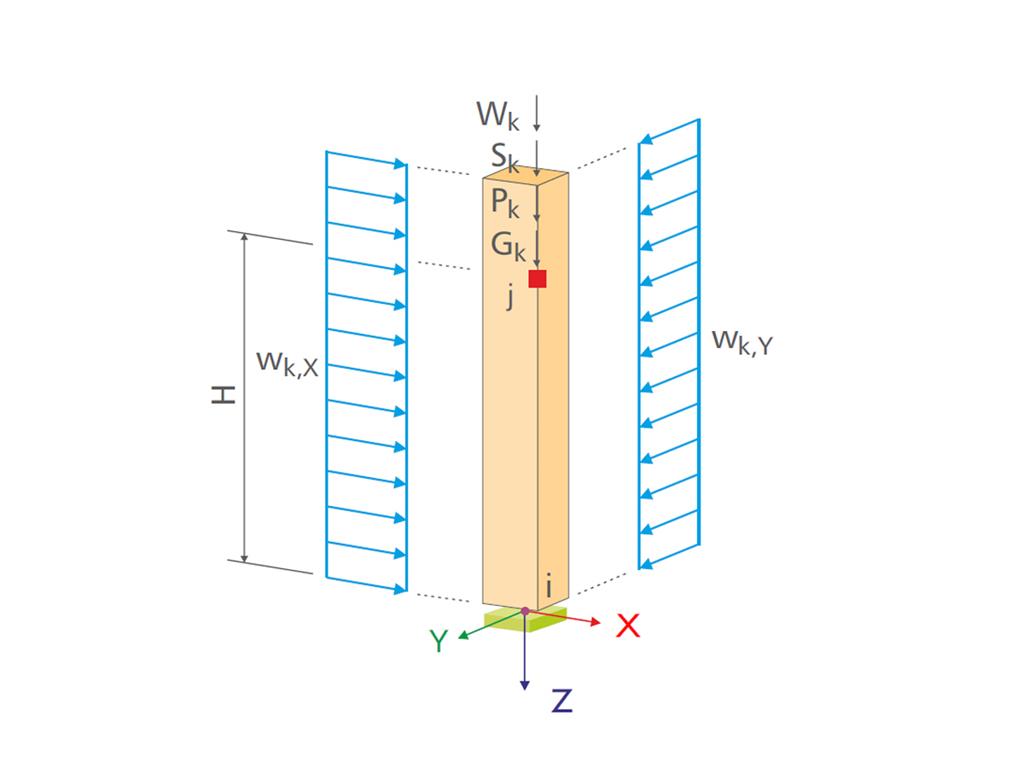

  • Simple geometry input with illustrative graphics
  • Extensive material library
  • Allocation of the model to service classes and specification of service class categories
  • Detailed settings of the fire resistance design
  • Specification of limit deformation for the serviceability limit state design
  • Determination of design ratios, support forces, and deformations
  • For design according to EC 5 (EN 1995), the following National Annexes are available:
    • Deutschland DIN EN 1995-1-1/NA:2013-08 (Germany)
    • NBN EN 1995-1-1/ANB:2012-07 (Belgium)
    • DK EN 1995-1-1/NA:2011-12 (Denmark)
    • SFS EN 1995-1-1/NA:2007-11 (Finland)
    • NF EN 1995-1-1/NA:2010-05 (France)
    • UNI EN 1995-1-1/NA:2010-09 (Italy)
    • NEN EN 1995-1-1/NB:2007-11 (Netherlands)
    • ÖNORM B 1995-1-1:2015-06 (Austria)
    • PN EN 1995-1-1/NA:2010-09 (Poland)
    • SS EN 1995-1-1 (Sweden)
    • STN EN 1995-1-1/NA:2008-12 (Slovakia)
    • SIST EN 1995-1-1/A101:2006-03 (Slovenia)
    • CSN EN 1995-1-1:2007-09 (Czech Republic)
    • BS EN 1995-1-1/NA:2009-10 (United Kingdom)
  • Automatic generation of wind and snow loads
  • Multiple optional reductions according to the selected standard
  • Direct data export to MS Excel
  • Program languages: English, German, Czech, Italian, Spanish, French, Portuguese, Polish, Chinese, Dutch and Russian
  • Verifiable printout report including all required designs. Printout report available in many output languages, for example English, German, French, Italian, Spanish, Russian, Czech, Polish, Portuguese, Chinese or Dutch.
  • Direct import of stp files from various CAD programs
Stand-Alone Timber Structures
RX-TIMBER Column 2.xx

Stand-Alone Program

Timber design of rectangular and circular columns according to Eurocode 5 or DIN 1052

Price of First License
360.00 USD
