Camera Fly Mode
Product Feature
With the view option Camera Fly Mode, you can fly through your RFEM and RSTAB structure. Control the direction and speed of the flight with your keyboard. Additionally, you can save the flight through your structure as a video.

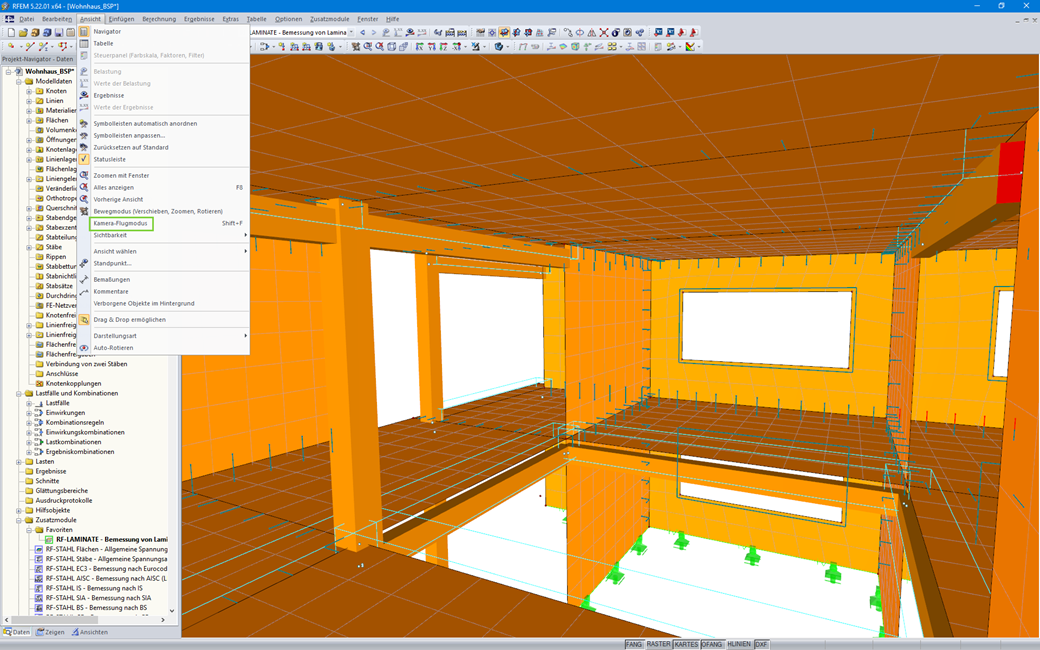

- Shift + F or use the menu: View -> Camera Fly Mode: activates the camera fly mode
- Arrow keys: move to the left, right, front and back
- Page keys: move up and down
- Plus and minus keys: adjust the speed of the flight
- Mouse: head movements
- Mouse wheel: zoom (similar to a camera lens)
- Escape key: exit the camera fly mode
Keywords
Camera Fly Mode Camera Flight mode Avatar
