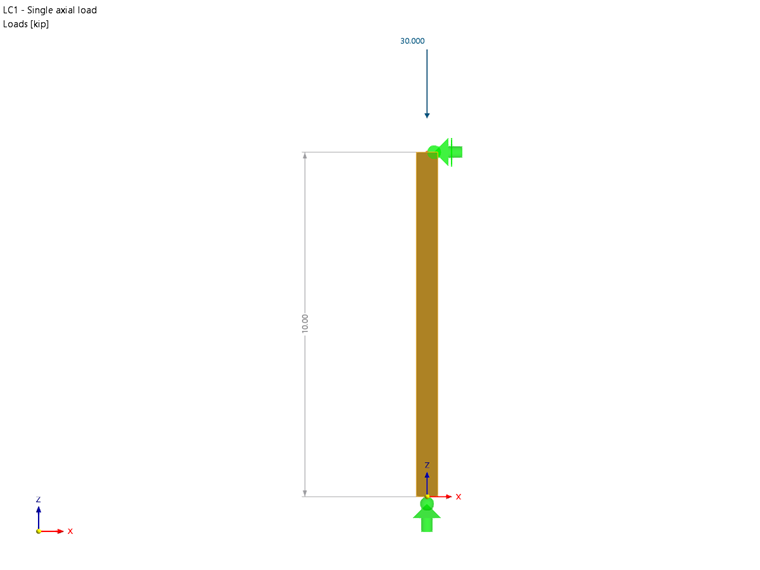

Sarà progettata una colonna strutturale di 10 piedi, nominale 8 pollici ⋅ 8 pollici cedro dell'Alaska Select Structural con un carico assiale di 30,00 kips. The goal of this analysis is to determine the adjusted compression factors and adjusted compressive design value of the column. Si assume una durata normale del carico e dei vincoli a cerniera a ciascuna estremità dell'asta. The loading criteria are simplified for this example. Normal loading criteria can be referenced in Sec. 1.4.4 [1]. In Image 01 and 02 is a diagram of the simple column and section properties respectfully.
Proprietà della colonna

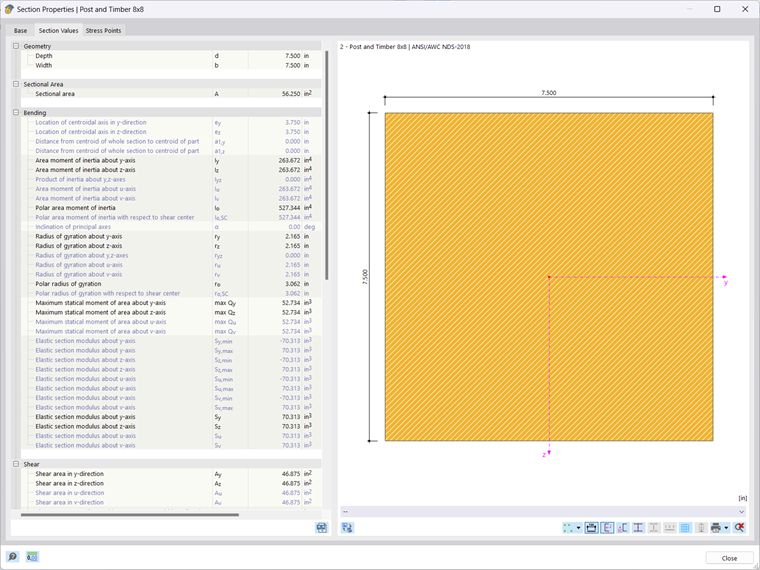

The cross-section used in this example is an 8 inch square post. The cross-section properties of the timber column are shown below:
b = 7.50 in, d = 7.50 in, L = 10.00 ft
Area della sezione trasversale lorda:
Ag = b ⋅ d = 7.50 in ⋅ 7.50 in = 56.25 in2
Moduli di resistenza:
Momento d'inerzia:
The material used is "Alaska Cedar, 5"x5" and Larger, Beam and Stringer, Select Structural". Le proprietà del materiale sono le seguenti:
Valore di progetto della compressione di riferimento:
Fc = 925 psi
Modulo di elasticità minimo:
Emin = 440 ksi
Column Adjustment Factors
For the design per the 2018 NDS standard and the ASD method, stability factors (or adjustment factors) must be applied to the compressive design value (fc). Questo alla fine fornirà il valore di progetto di compressione modificato (F'c). The factor F'c is calculated with the following equation, highly dependent on the listed adjustment factors from Table 4.3.1 [1]:
F'c = Fc ⋅ CD ⋅ CM ⋅ Ct ⋅ Cf ⋅ Ci ⋅ CP
Sotto, si determina ciascun coefficiente di correzione:
CD – The load duration factor is implemented to take into account different periods of loading. Neve, vento e terremoti sono considerati con CD. This factor must be multiplied by all reference design values except for the modulus of elasticity (E), modulus of elasticity for beam and column stability (Emin), and the compression forces perpendicular to the grain (Fc) based on Sec. 4.3.2 [1]. CD in this case is set to 1.00 as per Sec. 2.3.2 [1] assuming a load duration of 10 years.
CM – The wet service factor references design values for structural sawn lumber based on moisture service conditions specified in Sec. 4.1.4 [1]. In this case, based on Sec. 4.3.3 [1], CM is set to 0.910.
Ct – The temperature factor is controlled by a member's sustained exposure to elevated temperatures up to 150 degrees Fahrenheit. Tutti i valori di progetto di riferimento saranno moltiplicati per il Ct. Utilizing Table 2.3.3 [1], Ct is set to 1.00 for all reference design values, assuming temperatures are equal to or lesser than 100 degrees Fahrenheit.
CF – The size factor for sawn lumber does not consider wood as a homogeneous material. The size of the column and type of wood are taken into account. For this example, our column has a depth lesser than or equal to 12 inches. Referencing Table 4D based on the size of the column, a factor of 1.00 is applied. This info can be found in Sec. 4.3.6.2 [1].
Ci – The incising factor considers the preservation treatment applied to the wood to resist decay and avoid fungal growth. Most of the time this involves pressure treatment, but in some cases requires the wood to be incised increasing the surface area for chemical coverage. Per questo esempio, assumeremo che il legno sia inciso. Referencing Table 4.3.8 [1], an overview of the factors by which each member property must be multiplied is shown.
Modulo di elasticità rettificato
Anche il modulo di riferimento dei valori di elasticità (E ed Emin) deve essere modificato. The adjusted modulus of elasticity (E' and E'min) are determined from Table 4.3.1 [1] and the incising factor Ci is equal to 0.95 from Table 4.3.8 [1].
E' = E ⋅ CM ⋅ Ct ⋅ Ci = 1,140,000.00 psi
E'min = Emin ⋅ CM ⋅ Ct ⋅ Ci = 418,000.00 psi
Column Stability Factor (CP)
The column stability factor (CP) is needed in order to calculate the column's adjusted compressive design value and the compressive design ratio. The following steps will include the necessary equations and values to find CP.
The equation used to calculate CP is Eqn. (3.7-1) referenced in Section 3.7.1.5. The reference compression design value parallel to grain (Fc) is required and calculated below:
F'c = Fc ⋅ CD ⋅ CM ⋅ Ct ⋅ CF ⋅ Ci = 673.40 psi
The next value that needs to be calculated in Eqn. (3.7-1) is the critical buckling design value for compression members (FcE).
The slenderness ratio is calculated as so:
The slenderness ratio is applied to the equation for FcE and the following value is calculated:
FcE = 1342.17 psi
The last variable needed is (c), which is equal to 0.8 for sawn lumber. All of the variables can be applied to Eqn. (3.7-1) and the following value is calculated for CP.
Now, all adjustment factors have been determined from Table 4.3.1 [1]. Therefore, the adjusted compressive design value parallel to grain (F'c) can be calculated.
F'c = Fc ⋅ CD ⋅ CM ⋅ Ct ⋅ CF ⋅ Ci ⋅ CP = 583.602 psi
Tasso di lavoro della colonna
The ultimate goal of this example is to obtain the design ratio for this simple column. Questo determinerà se la misura dell'asta è adeguata sotto il carico specificato o se dovrebbe essere ulteriormente ottimizzata. Calculating the design ratio requires the adjusted compressive design value parallel to the grain about both axes (F'c) and actual compressive stress parallel to the grain (fc). In this case, the cross-section is symmetrical, so F'c is equivalent for both the x- and the y-axis.
The actual compressive stress (fc) is calculated below:
The adjusted compressive design value parallel to the grain (F'c) and the actual compressive stress (fc) are used to compile the design ratio (η) as per Sec. 3.6.3.
RFEM 6 Verification
When designing timber per the 2018 NDS standard in RFEM 6, the Timber Design Add-on analyzes and optimizes cross-sections based on loading criteria and member capacity for a single member or a set of members. Questo è disponibile per i metodi di verifica LRFD o ASD. The results between the analytical example and RFEM 6 are compared and verified below.

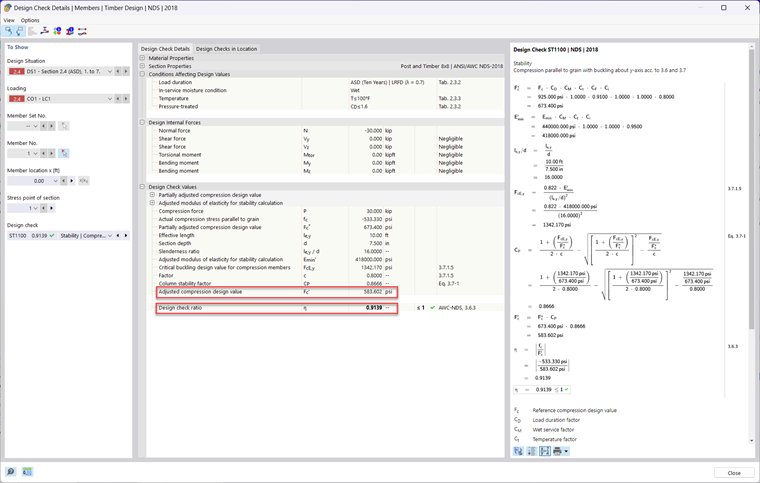

Editing the Member is where the Design Properties like the Effective Lengths, Service Conditions, Design Configurations and Design Supports can be adjusted for design. The material and cross-section are defined here as well. The moisture service condition is set to Wet and the temperature is equal to or less than 100 degrees Fahrenheit. Lateral-Torsional Buckling is defined according to Table 3.3.3 [1]. The material is set to "User-Defined" and considered "Incised".
Valore di progetto della compressione modificato parallelo alla fibratura:
F'c = 1.000
Tasso di lavoro:
η = 1.000
