After successfully completing the time-dependent analysis, the results of the final step can be evaluated graphically and in tables. By activating the Save results of all load increments option, the intermediate results for all time steps will also be available.

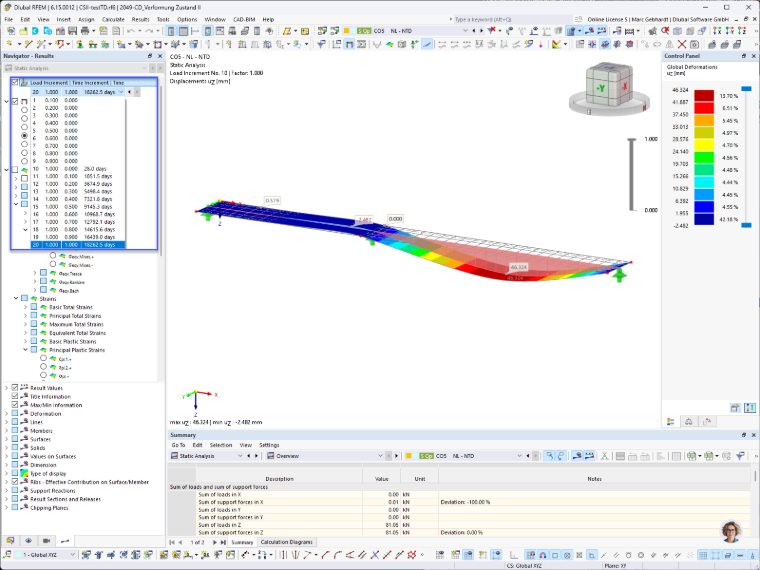

In the Navigator – Results, you can now select time increments in addition to the calculated load increments.

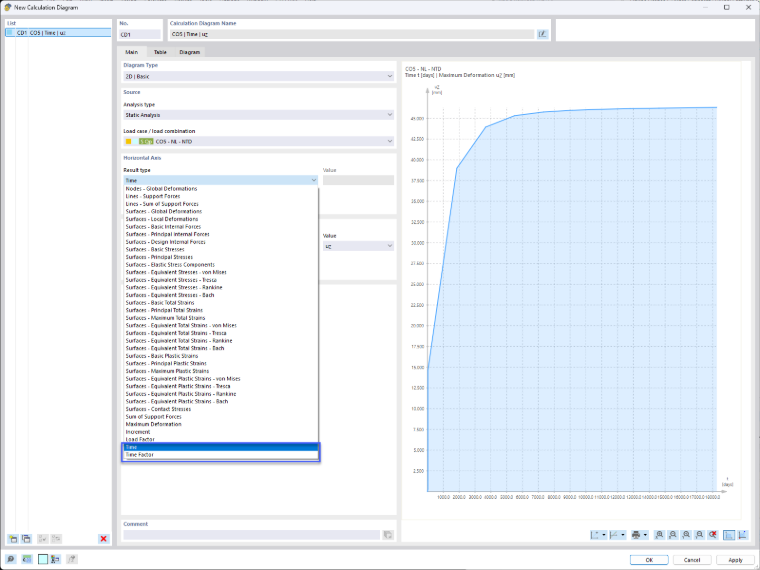

It is also possible to assign the “Time” or “Time Increment” result type to the axes in the calculation diagram monitor, thus displaying the distribution of a variable over the time-dependent calculation.
