Pneumatic Roof Structure
Model to Download

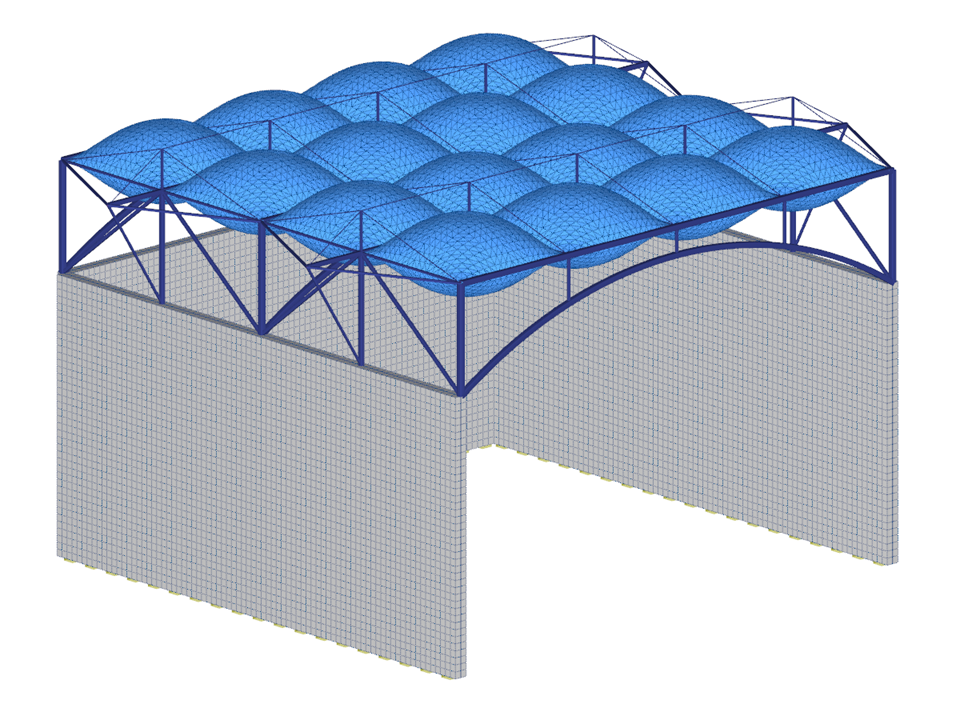

Roof structure with pneumatic cushions
Model Used in
- Views 1591x
- Downloads 165x
- Updated 8 May 2021
- Size 26.13 MB
- Number of Nodes 368
- Number of Lines 179
- Number of Members 163
- Number of Surfaces 35
- Number of Solids 16
- Number of Load Cases 13
- Number of Load Combinations 7
- Number of Result Combinations 1
- Total Weight 96.355 t
- Dimensions 34.73 x 41.01 x 25.43 ft
- Program Version 5.23.00.152982
The DXF interface in RFEM now exports a 3DFACE element in the DXF file for each FE mesh cell of the exported structure. The 3DFACE element is detected by AutoCAD during import, for example, and can be displayed as a surface in the graphic. Different visual styles help display the 3DFACE surfaces in a desired view.
In RFEM, there is an option to couple surfaces with the stiffness types "Membrane" and "Membrane Orthotropic" with the material models "Isotropic Nonlinear Elastic 2D/3D" and "Isotropic Plastic 2D/3D" (RF-MAT NL add-on module required).
This functionality enables the simulation of the nonlinear strain behavior of, for example, ETFE foils.
