Steel Connections of Frame Structure
Model to Download
Description

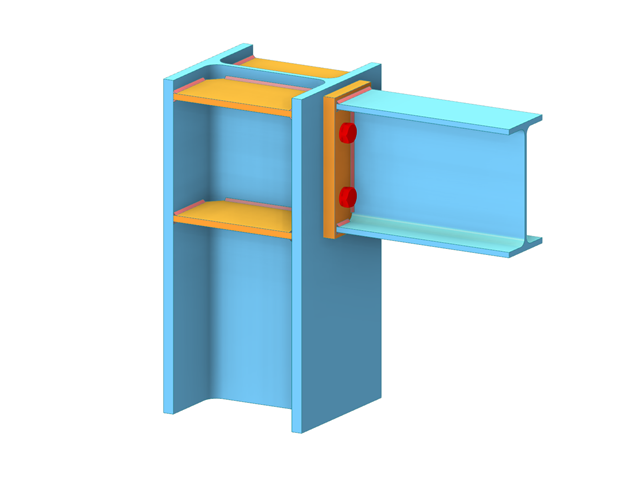

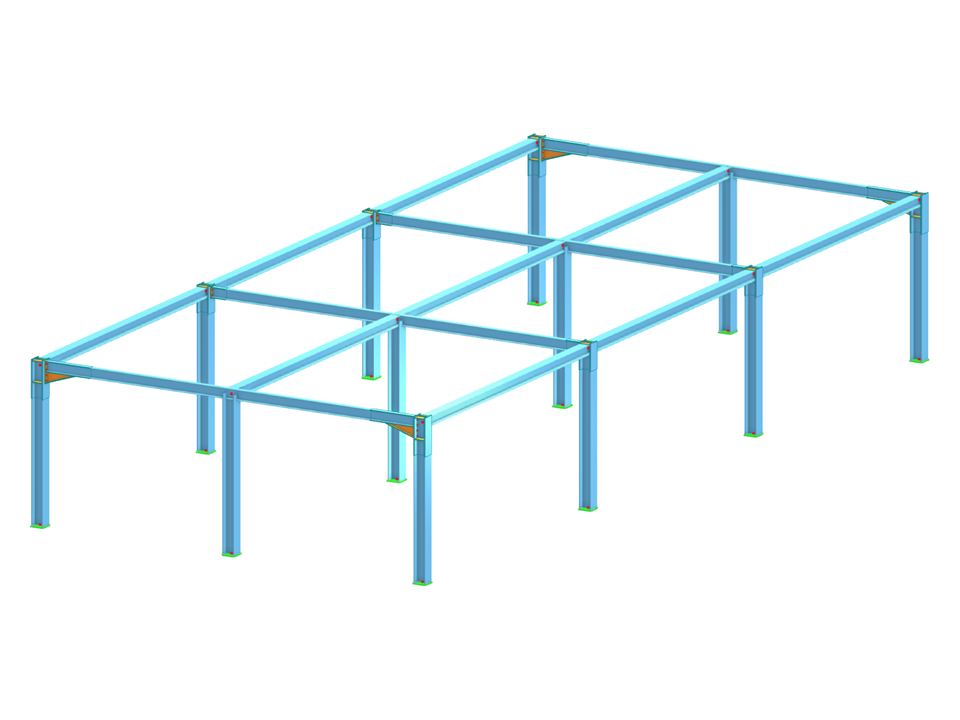

Frame structure with modeled connections using the Steel Joints add-on. The connections can be designed for buckling. The structure and the connection can be used for a stability analysis using the Structure Stability add-on for RFEM 6.
Submodel
Keywords
Connections Steel Steel Joints Stability Add-on Frame Structure
Links
- Steel Joints for RFEM 6
- Structural Analysis & Design Software for Steel Structures
- Structure Stability for RFEM 6 / RSTAB 9
Write Comment...
Write Comment...
- Views 237x
- Downloads 33x
- Updated 14 April 2022
- Number of Nodes 24
- Number of Lines 29
- Number of Members 29
- Number of Surfaces 0
- Number of Solids 0
- Number of Load Cases 2
- Number of Load Combinations 3
- Number of Result Combinations 0
- Total Weight 5,992 t
- Dimensions 8,000 x 3,000 x 18,000 m
