Building Model for RFEM 6 | Features
  • Building Model
  • Features

Building Model for RFEM 6 | Features

If you are planning a building with several stories, the Building Model add-on is the perfect tool for you. It allows you to define stories for your building. You can also adjust the stories in many ways afterwards – exactly the way you need.

You can perform stiffening calculations, design shear walls, analyze floors as separate 2D structures, determine key parameters for dynamic analysis, and much more.

Download Icon Download Free Trial Version
Building Model Add-on for RFEM 6
Subnavigation
01
Overview
02
Features
03
Stiffening and Shear Wall
04
Seismic Analysis
05
Examples

Powerful Features in Building Model Add-on

The Building Model add-on provides numerous helpful features to support you in the structural and dynamic analysis of multi-story buildings.

Features

Discover powerful tools that optimize building modeling and analysis.

  • Analysis of Slabs as Detached 2D Systems

    The calculation of a building model allows for differentiated result display, depending on the story modeling. Initially, the global model is created in 3D, with the slabs modeled as either rigid diaphragms or semi-rigid diaphragms. This enables a design similar to the structural analysis, which does not neglect the effects of the 3D model.

    The results of the 3D and 2D calculations are merged into a single model, which facilitates data exchange and avoids potential errors. Vertical surfaces can also be divided into shear walls and wall-like beams (lintels), from which the program automatically generates result beams that can be directly designed in the design add-ons.

  • Building Story Generator

    The building story generator allows you to automatically create building stories based on the model topology.

  • Center of Rigidity
    You can have the center of rigidity displayed in tables and graphics. You can use this for your dynamic analyses, for example.

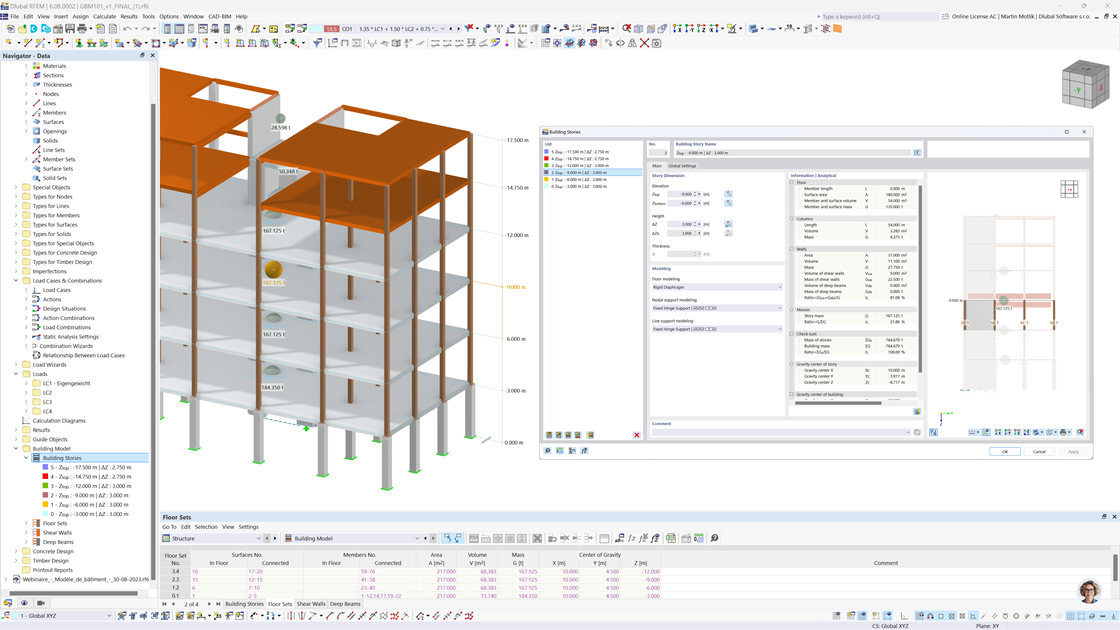

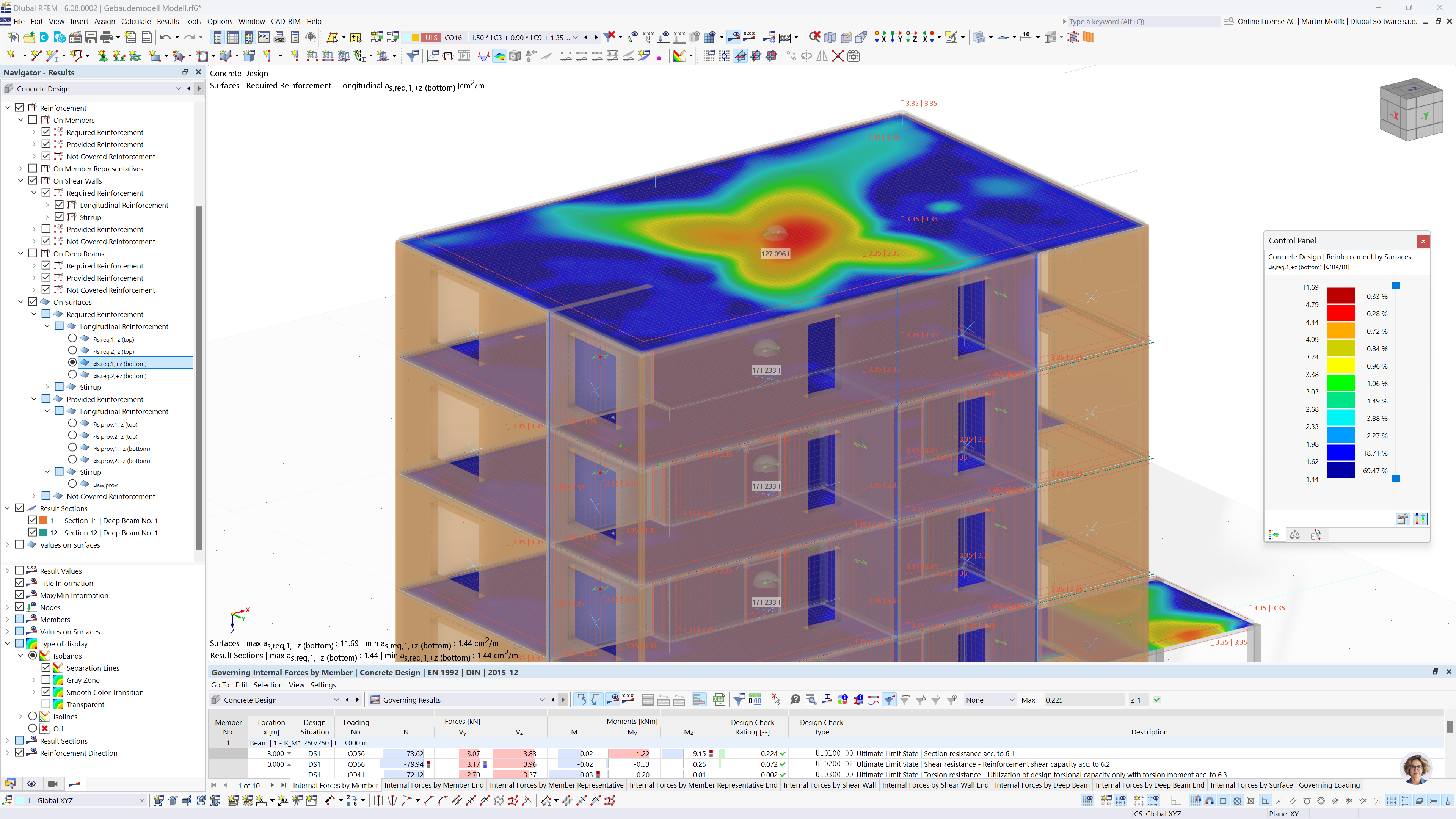

RFEM Building Model Add-on: Analysis of Floor Systems
Efficient modeling with the Building Model add-on

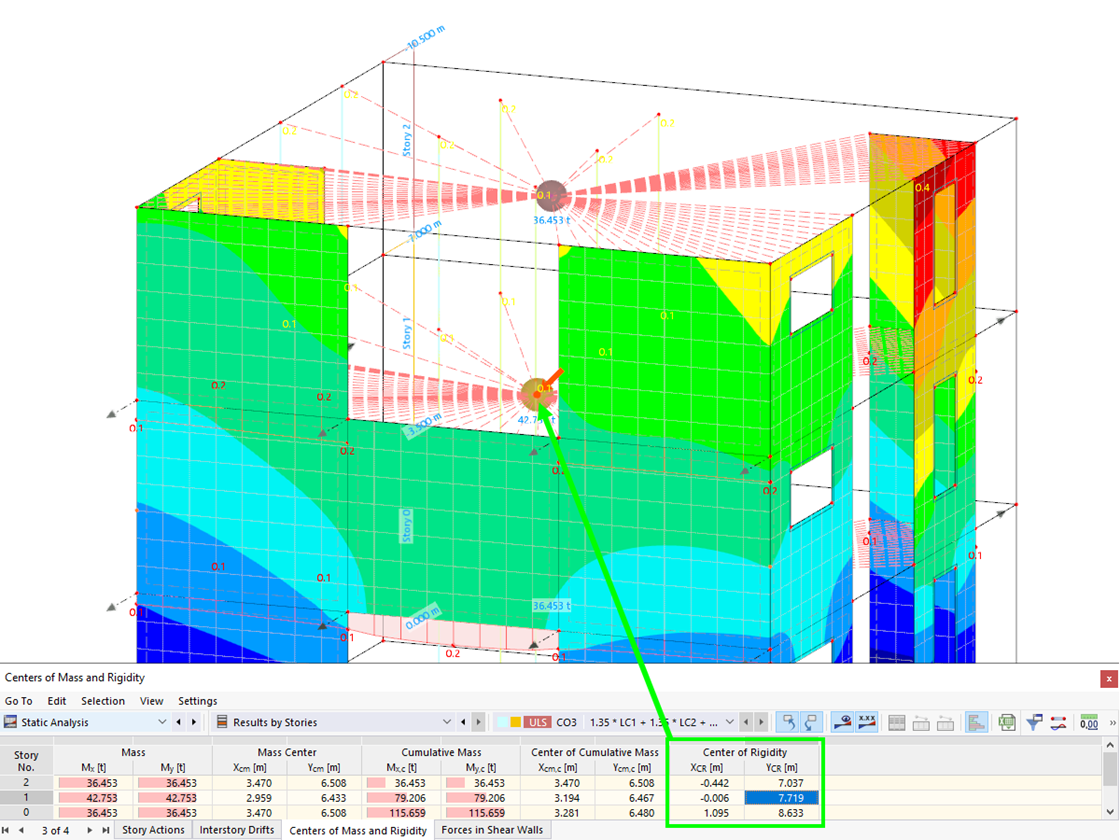

Tabular and Graphical Output of Center of Rigidity
Customer Reviews Icon

Check out What Our Customers Say About Dlubal Products!

Support Icon

Experience Dlubal Live: Schedule Your Online Product Demo Today!

Download Icon

Try Full Version 90 Days for Free

Recommended Features and Services

White vector icon used to represent a community symbol on a dark background.

Dlubal Community

Join a vibrant community of engineers and designers. Ask questions, share ideas, suggest features, and connect with others facing similar challenges.

Icon symbolizing application programming interface, designed with white graphics suitable for dark backgrounds.

API

Use the Dlubal API to automate processes, integrate with external tools, and build custom workflows tailored to your specific project needs.

White icon of a learning platform on a dark background, suitable for Dlubal training content.

Learning & Knowledge Base

Start quickly with step-by-step video tutorials and helpful guides. Find answers, tips, and learning content for all experience levels.

White cloud computing icon designed for use on a dark background.

Cloud Calculations

Run your analyses in the cloud – without hardware limits. Save local resources, process complex models, and work anywhere, any time.

Sensitivity Coefficient

In seismic analysis using the response spectrum of Building Models, the sensitivity coefficients for the horizontal directions of the individual stories are displayed in a clear table.

This table provides a clear display to help you understand the model's response to different loads and influences, and is therefore a valuable contribution to the quality of your analysis.

More Information

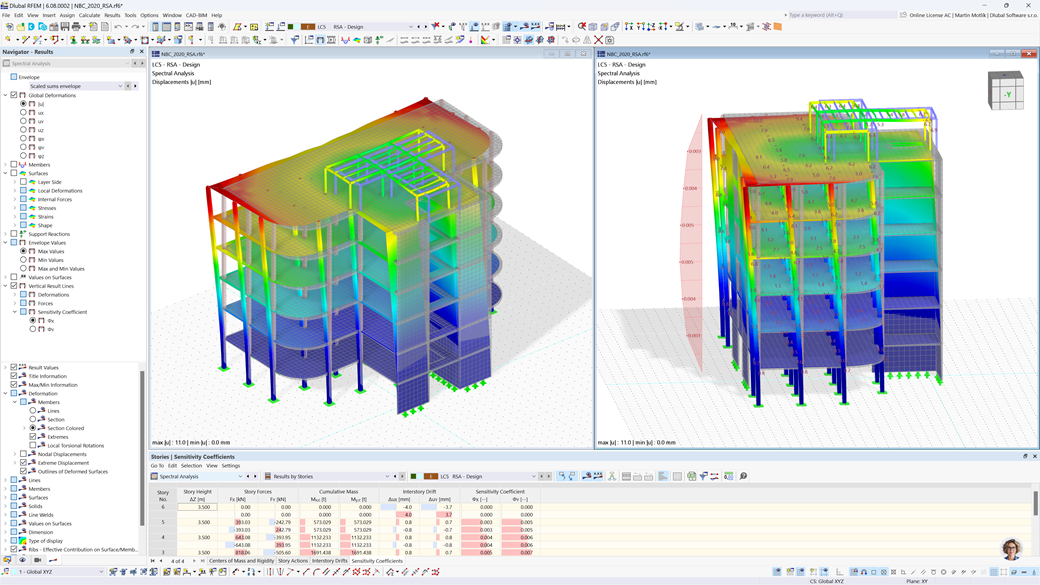

Sensitivity Coefficient Result in Response Spectrum Analysis in RFEM 6
Sensitivity Coefficient

Intuitive Data Input

You have two options regarding the building model. You can either create it at the beginning of the structural modeling process or activate it afterwards. You can then use the building model to directly define and manipulate floors.

When manipulating floors, you can select from a variety of options to modify or retain the included objects.

More Information
User-Friendly Data Input in RFEM 6 for Precise Building Modeling

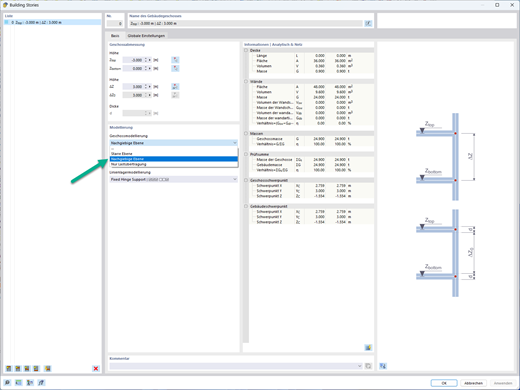

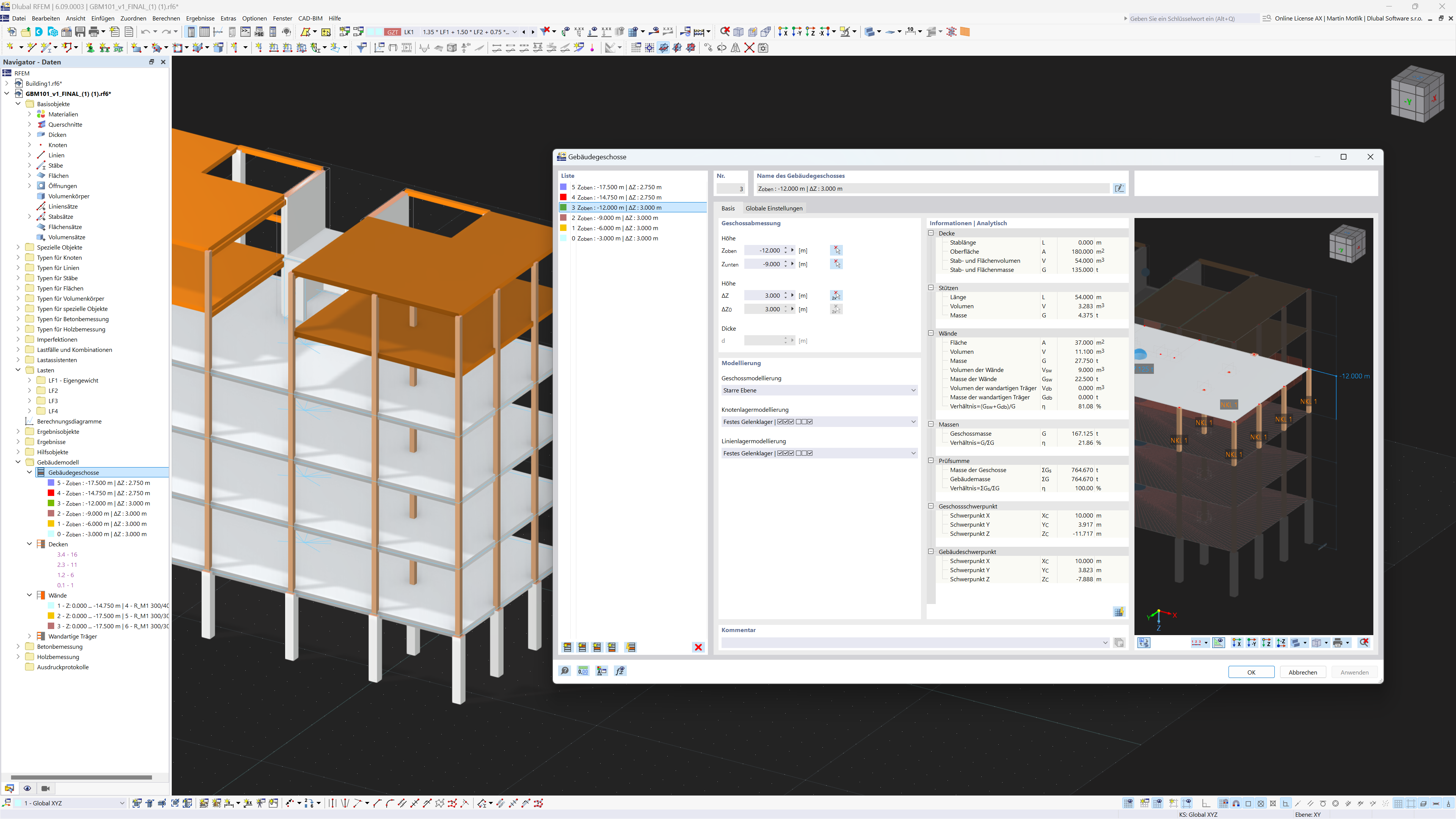

Dialog box for defining the individual floors of the building model.

Calculation of Center of Gravity Considering Loads

The center of gravity is displayed for load conditions and load combinations in the “Results by Story” table of Building Model. In addition to the self-weight, the vertical loads of the respective conditions are also taken into account.

You can also use the“Center of Gravity and Information on Selected Objects” dialog box to display the center of gravity in relation to specific selected loads. This facilitates the stability analysis and the optimization of the design.

It is also possible to graphically display the resulting center of mass and stiffness.

More Information

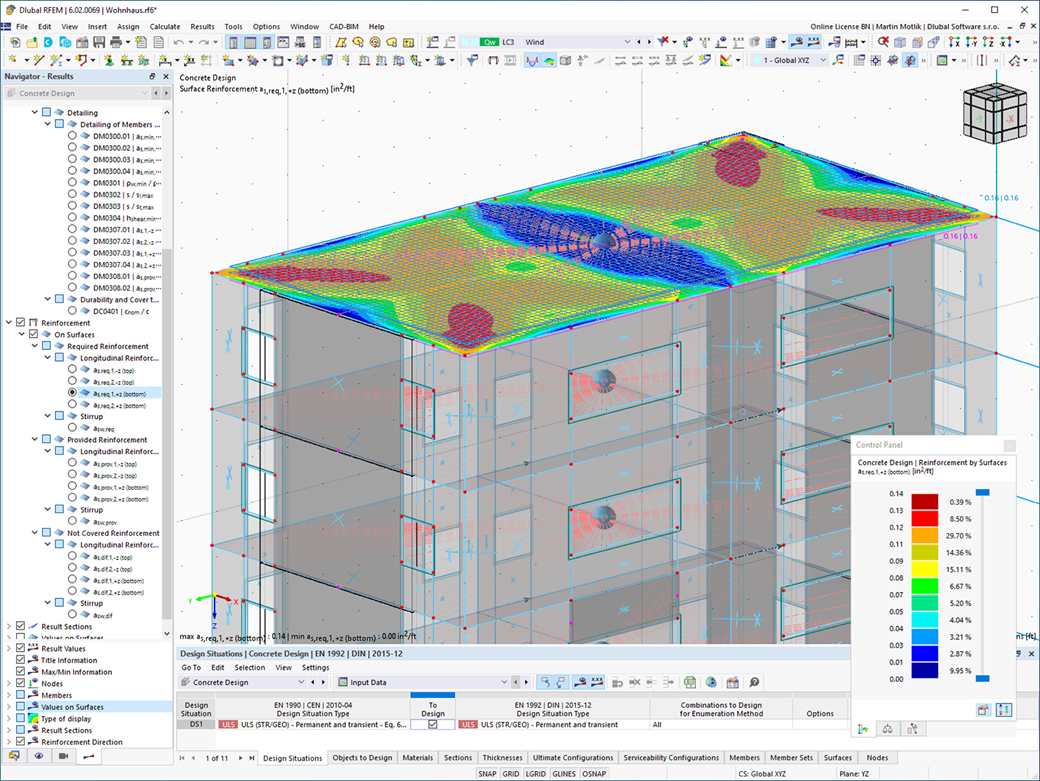

Feature 002632 | Floor Analysis as Detached 2D Structures

What other features do you expect?

The Concrete Design add-on is constantly being developed and expanded with new features. Discover what else it can provide and take your projects to a new level!

Feature 002856 | Design Properties of Shear Walls and Deep Beams

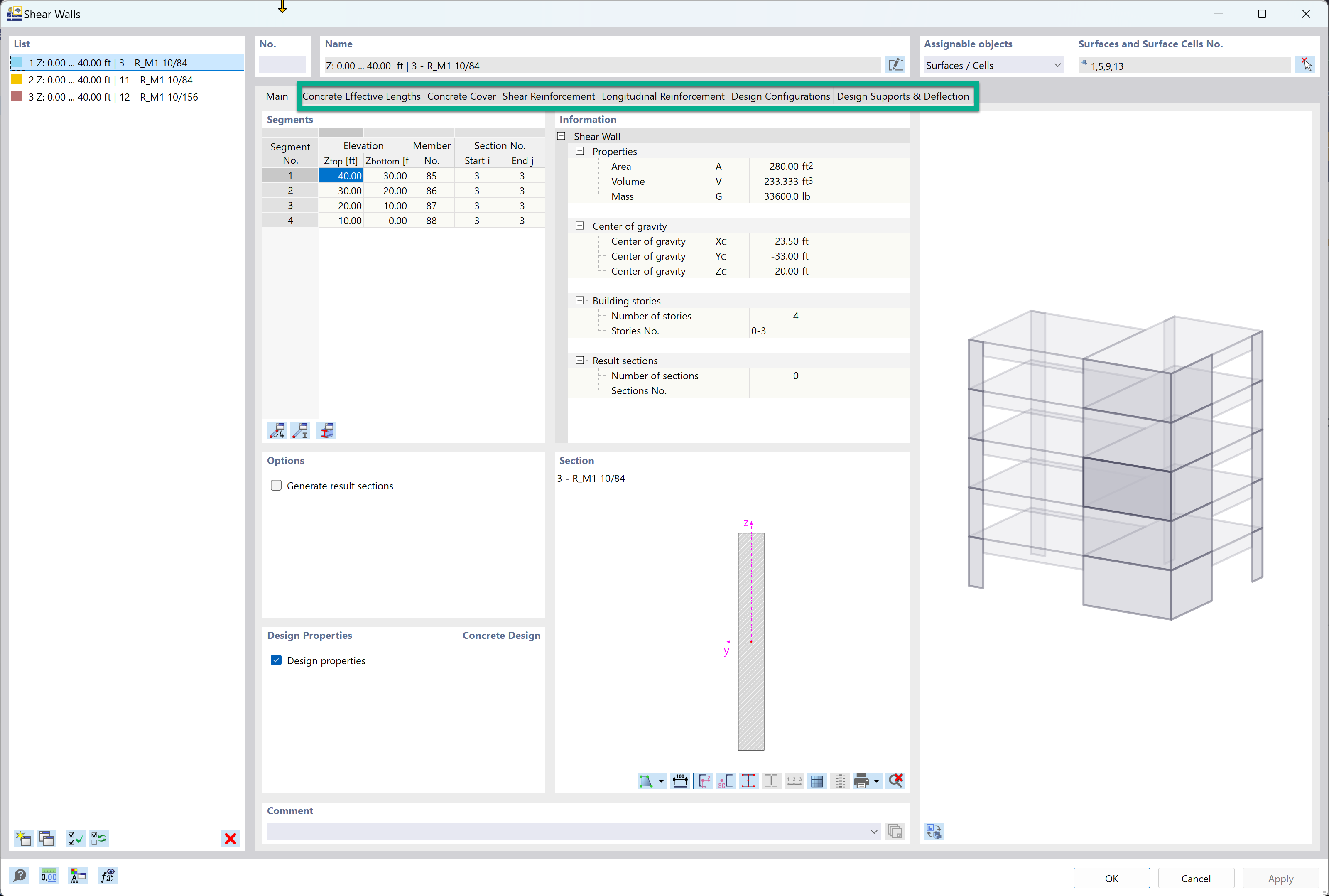

Design Properties of Shear Walls and Deep Beams

In the Building Model add-on, you can define the design properties of shear walls and deep beams for the respective add-ons.

Feature 002818 | Ignore openings

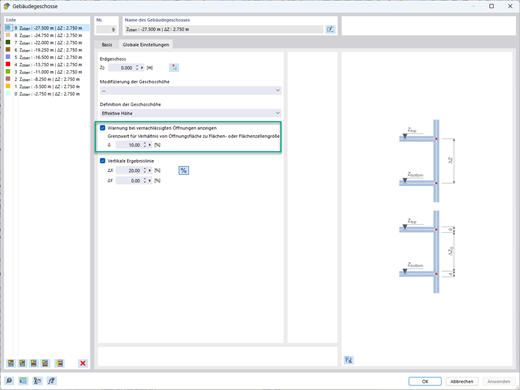

Neglecting Openings
