RWIND 2 | Output

By solving the numerical flow problem, you can obtain the following results on and around the model:

  • Pressure on structure surface
  • Coefficient Cp distribution on the structure surfaces
  • Pressure field about the structure geometry
  • Velocity field about the structure geometry
  • Turbulence k-ω field about the structure geometry
  • Turbulence k-ε field about the structure geometry
  • Velocity vectors about the structure geometry
  • Streamlines about the structure geometry
  • Forces on member-shaped structures that were originally generated from member elements

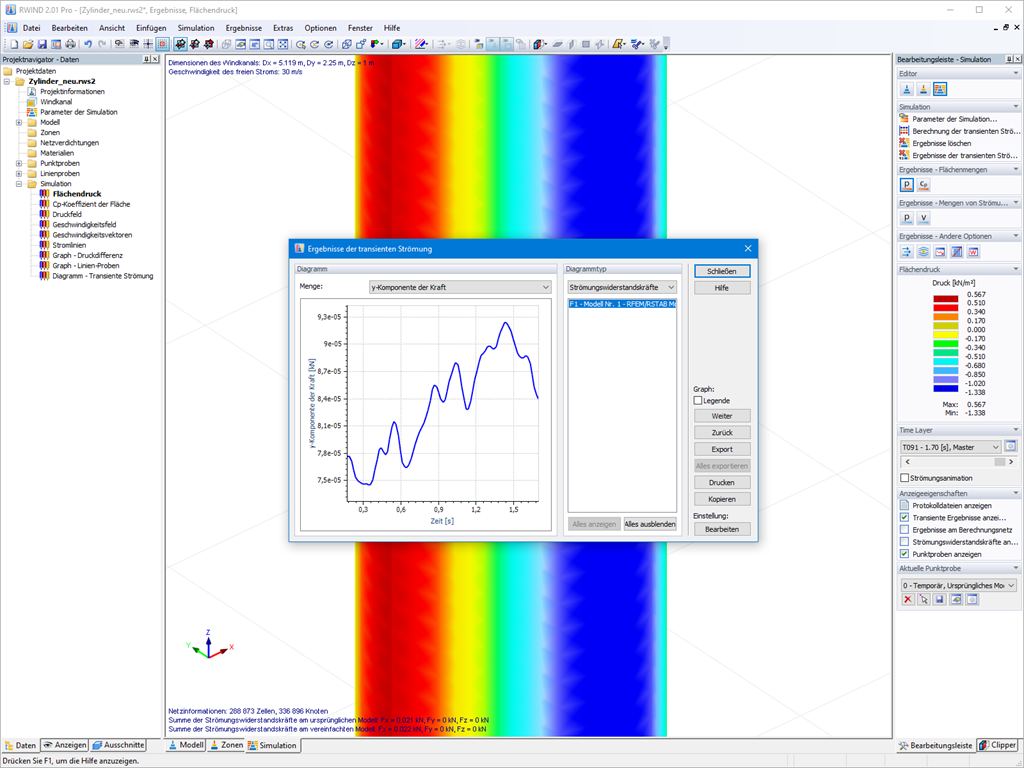

  • Convergence diagram
  • Direction and size of the flow resistance of the defined structures

Despite this amount of information, RWIND 2 remains clearly arranged, as is typical for the Dlubal programs. You can specify freely definable zones for a graphic evaluation. Voluminously displayed flow results about the structure geometry are often confusing – you know the problem for sure. That's why RWIND Basic provides freely movable section planes for the separate display of the "solid results" in a plane. For the 3D branched streamline result, you have an option to select between a static and an animated display in the form of moving line segments or particles. This option helps you to represent the wind flow as a dynamic effect.

You can export all results as a picture or, especially for the animated results, as a video.
