FAQ 000254 EN

Display Settings RFEM RSTAB

Where can I set which elements are to be displayed in a graphic?

Answer

This settings can be done in the Display Navigator.

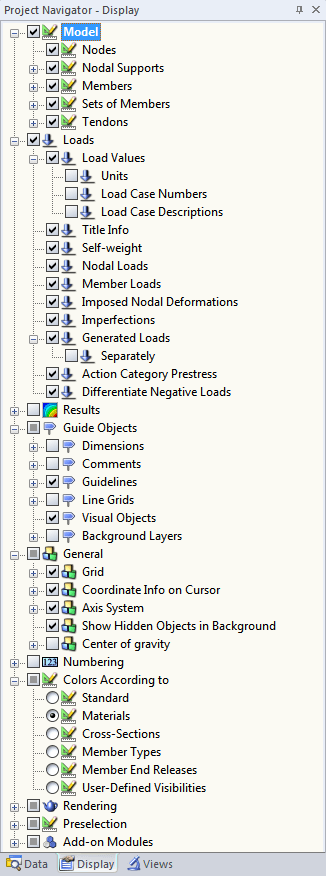

Click the second tab on the bottom part of the navigator to activate the Display Navigator. In a clearly-arranged tree structure, you can display or hide the individual objects in the graphic. For this, select the check box of the corresponding entry.
