The line and nodal supports are displayed too large. How can I adjust the size of the supports?

Answer

By default, the sizes of the supports are optimized for reinforced concrete structures.

The simplest way to change the displayed size is to right-click the support, and then select "Decrease Size."

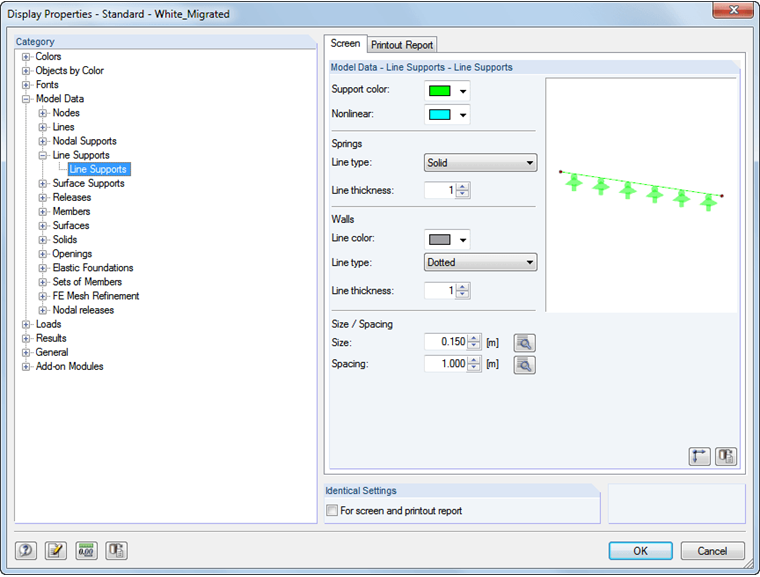

If this doesn't improve the display, use the "Display Properties" dialog box. For the support symbols, there are limit values relative to the global model. To adjust the limits, click [Settings] (see Figure).

You can save the modified display properties in configurations. This allows you to prepare various display properties. To save the current configuration or reload the saved configuration file, select "Configuration Manager" from the "Options" menu.
